0-10V ControllerSKU: SR-2102(0-10V
Specifications
| Part No. | Input Voltage | Input Current | Output | Remarks | Dimension (mm) |
|---|---|---|---|---|---|
| SR-2102(0-10V/PWM) | 100-240VAC | 60mA Max. | 2*(0-5VDC)2*(0-10VDC)2*(0-15VDC) | Output PWM Signal | 170x59x29 |
Product Dimension

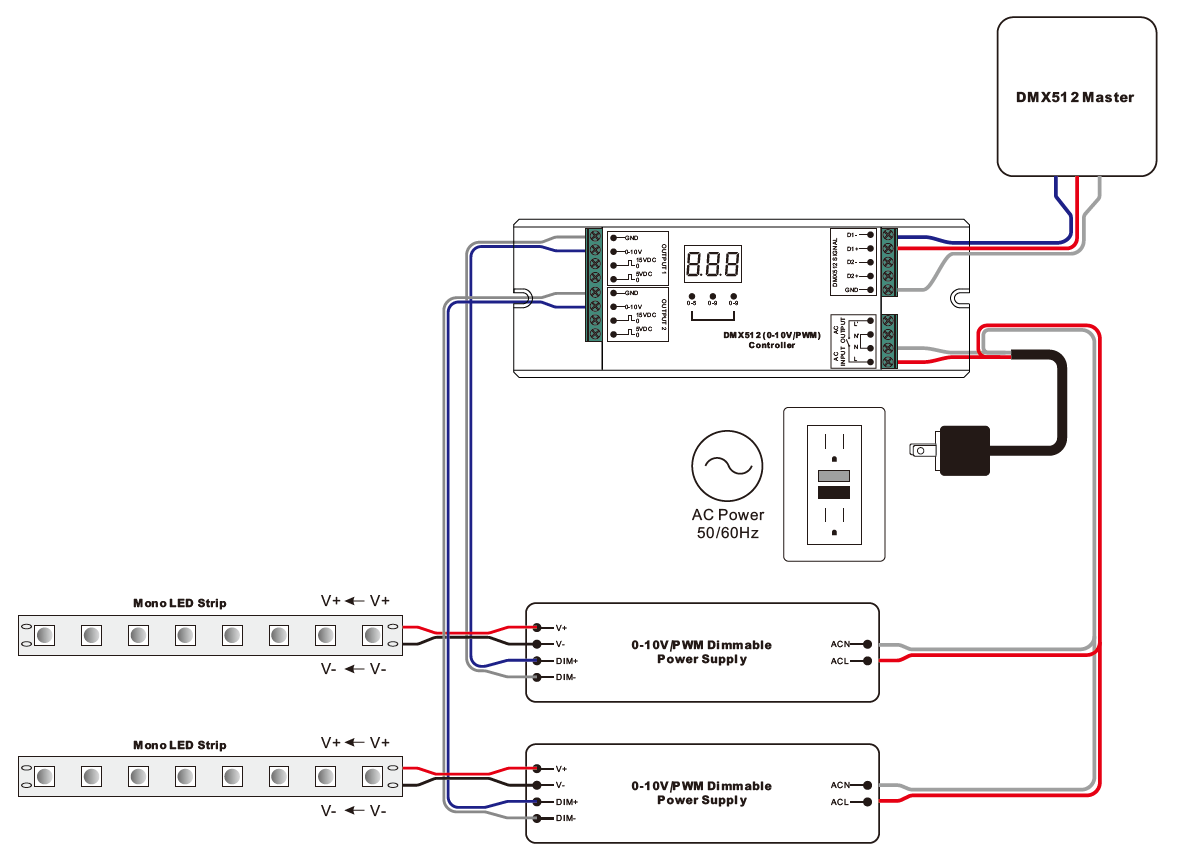

Wiring Diagram
-
Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
-
Đổi trả dễ dàngTheo chính sách cửa hàng
-
Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật

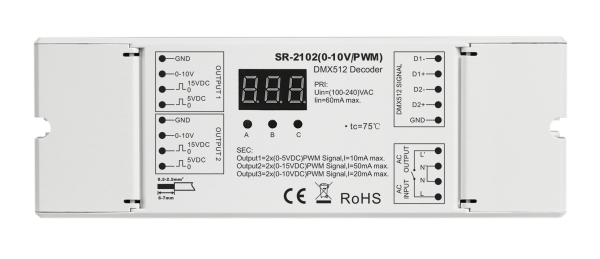

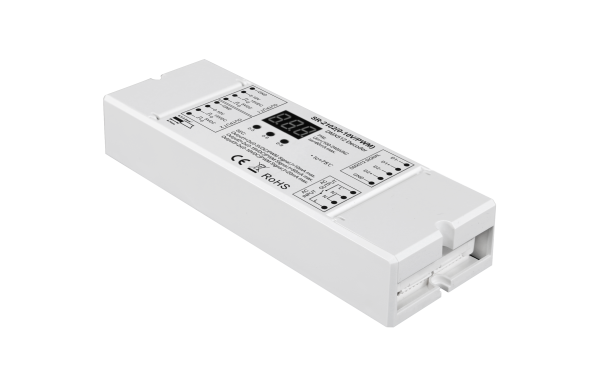

The SR-2102(0-10V/PWM) is a 0-10V/PWM LED driver which receives and converts DMX512 signal to 0-10V/PWM signal to switch and dim single color LED lighting. The 0-10V driver can be compatible with a variety of DMX512 masters. DMX address can be easily set and displayed on the digital numeric display.
Key Features
- 0-10V/PWM LED driver which receives and converts DMX512 signal to 0-10V/PWM signal
- DMX512 compliant control interface, DMX address can be set freely and shown on the digital numeric display
- To switch and dim single color LED lighting
- Compatible with a variety of DMX512 masters
