SR-2001
0/1-10V Dimmer
SR-1009(0-10V/PWM)
0-10V ControllerSKU: SR-1009(0-10V-PWM
Specifications
| Part No. | Input Voltage | Input Current | Output | Remarks | Dimension (mm) |
|---|---|---|---|---|---|
| SR-1009(0-10V/PWM) | 100-240VAC | 60mA Max. | 2*(0-5VDC)2*(0-10VDC)2*(0-15VDC) | Output PWM Signal | 59*170*29 |
Product Dimension

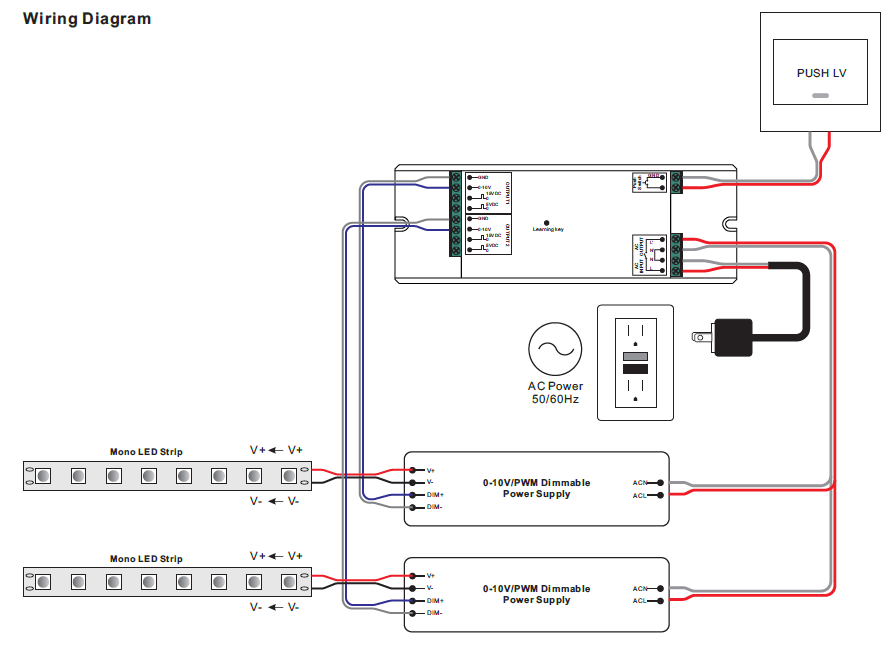

Wiring Diagram
-
Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
-
Đổi trả dễ dàngTheo chính sách cửa hàng
-
Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật
The SR-1009-0-10V-PWM is a LED driver which receives and converts RF signal to 0-10V/PWM signal to switch and dim single color LED lighting. The driver can be compatible with a variety of remotes and push switch as well.
Key Features
- 100-240VAC wide input
- Receives and converts RF signal to 0-10V/PWM signal
- Compatible with a variety of remote controls
- Compatible with push switch
- To switch and dim single color LED lighting
- Radio frequency available: 869.5/434/916.5MHz
