SR-2303(0-10V/PWM)
SR-2001P
0/1-10V Dimmer
SR-2303(0-10V/PWM)
0-10V ControllerSKU: SR-2303(0-10V
Specifications
| Part No. | Input Voltage | Input Current | Output | Remarks | Dimension (mm) |
|---|---|---|---|---|---|
| SR-2303(0-10V/PWM) | 100-240VAC | 60mA Max. | 2*(0-5VDC)2*(0-10VDC)2*(0-15VDC) | Output PWM Signal | 59*170*29 |
Product Dimension

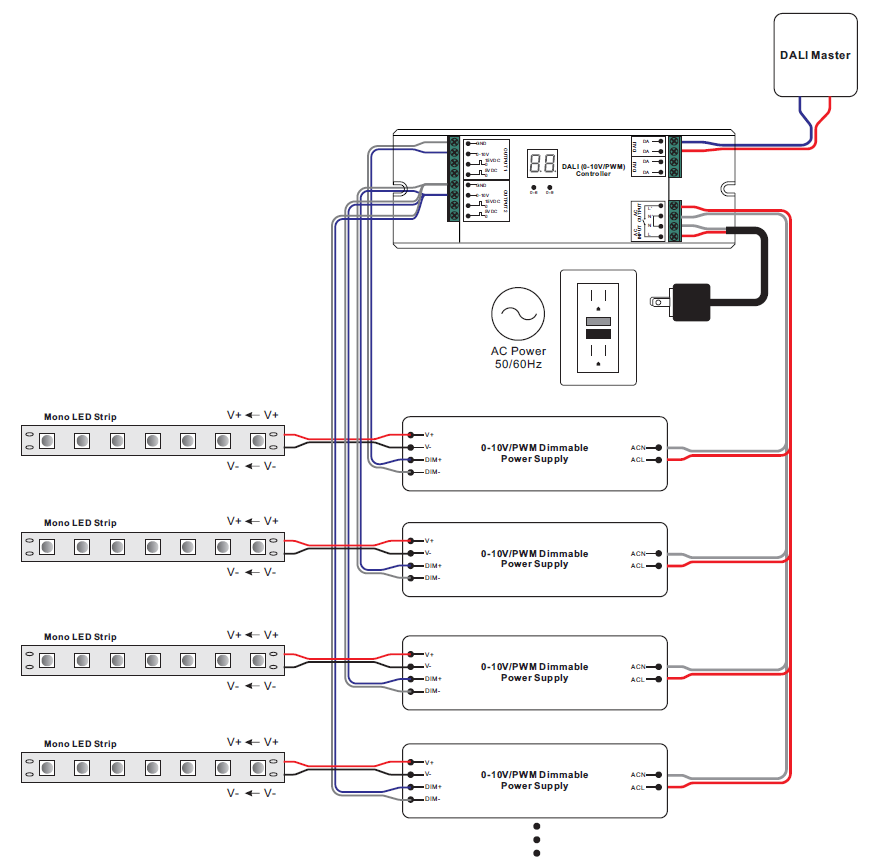

Wiring Diagram
-
Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
-
Đổi trả dễ dàngTheo chính sách cửa hàng
-
Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật
The SR-2303 (0-10V/PWM) is a 0-10V LED driver which receives and converts DALI signal to 0-10V/PWM signal to dim and switch single color LED lighting. The DALI address can be manually assigned and shown on the numeric digital display or automatically assigned by master controllers. The 0-10V driver can be compatible with a variety of DALI masters.
Key Features
- DALI certified
- TUV CE certified
- 0-10V LED driver which receives and converts DALI signal to 0-10V/PWM signal
- To dim and switch single color LED lighting
- DALI address can be manually assigned and shown in numeric digital display or automatically assigned by master controller
- Compatible with a variety of DALI masters
