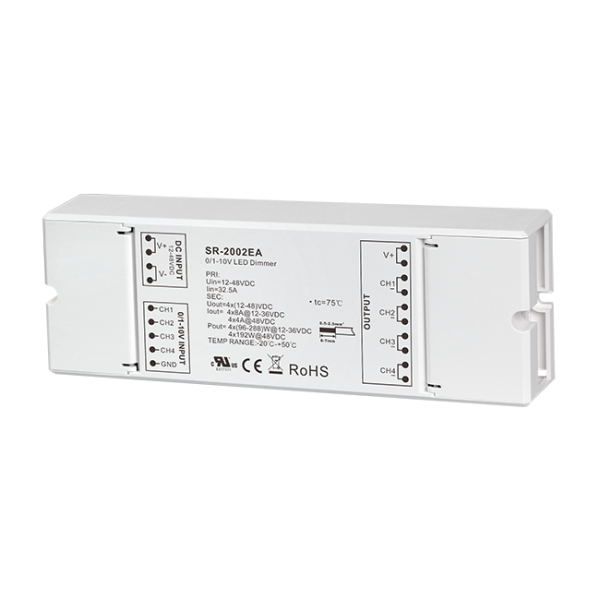

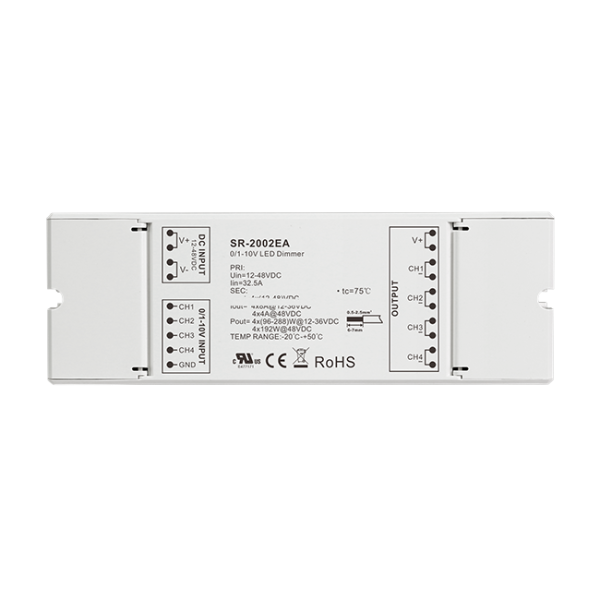

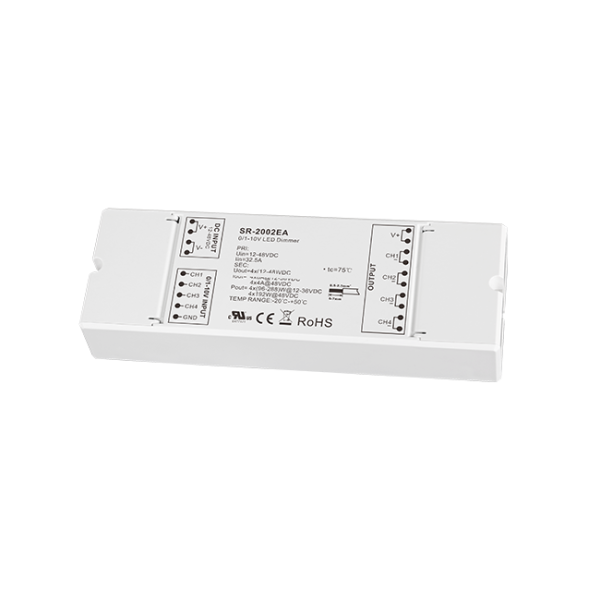

The SR-2002EA is a 0/1-10V constant voltage dimmer with 4 channel, maximum 8A per channel output and available in 12VDC-48VDC, which receives standard 1-10V dimming signal and outputs PWM signal. The dimmer switch is designed with 4 channel 1-10V input and 4 channel PWM output. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering.

Key Features

• Constant voltage 0/1-10V LED dimmer with 4 channel, maximum 8A per channel output and available in 12VDC-48VDC
• Analog dim driver, receives standard 1-10V dim signal input
• 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes
• 4 channel 1-10V input and 4 channel PWM output
• 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering
• To work with power repeater to expand output unlimitedly
