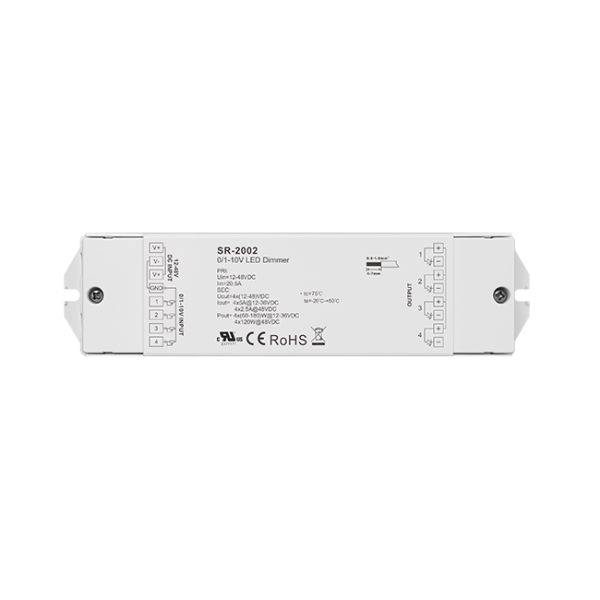

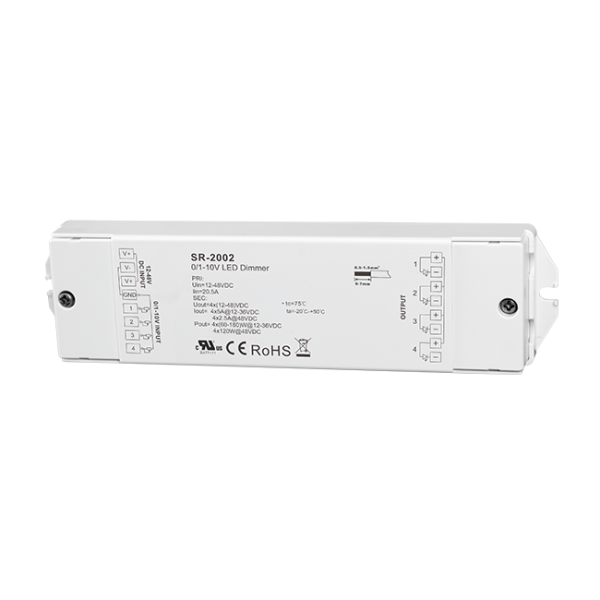

SR-2002
0-10V ControllerSKU: SR-2002
Specifications
| Part No. | Input Voltage | Output Current | Output Power | Output Type | Dimension (LxWxH) |
|---|---|---|---|---|---|
| SR-2002 | 12-48VDC |
4x5A@12-36VDC
4×2.5A@48VDC
|
4x(60-180)W@12-36VDC
4x120W@48VDC
|
Constant Voltage | 178x46x22mm |

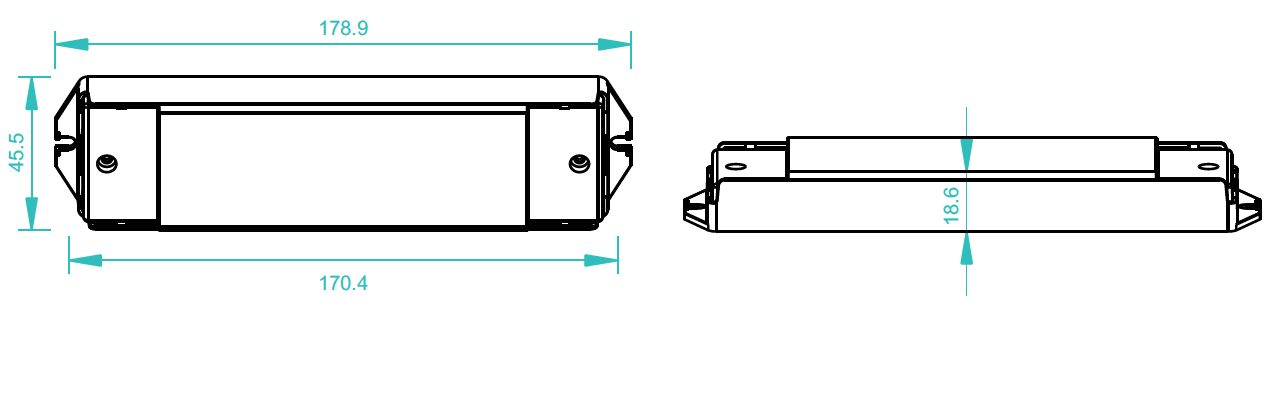

Product Dimension

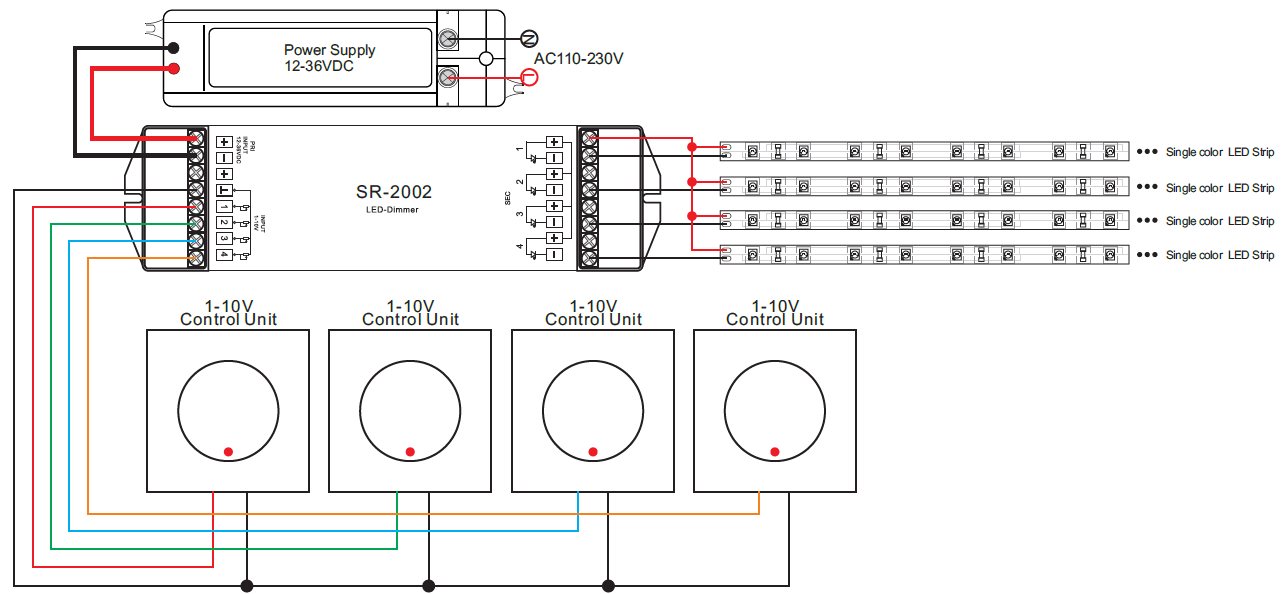

Wiring Diagram
-
Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
-
Đổi trả dễ dàngTheo chính sách cửa hàng
-
Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật
The SR-2002 is a 0/1-10V constant voltage dimmer with 4 channel, maximum 5A per channel output and available in 12-48VDC, which receives standard 1-10V dimming signal and outputs PWM signal. The dimmer switch is designed with 4 channel 1-10V input and 4 channel PWM output. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering.
Key Features
- Constant voltage 0/1-10V LED dimmer with 4 channel, maximum 5A per channel output and available in 12-48VDC
- Analog dim driver, receives standard 1-10V dim signal input
- 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes
- 4 channel 1-10V input and 4 channel PWM output
- 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering
- To work with power repeater to expand output unlimitedly
