SR-2006(Push)

SR-2006(Push)

0-10V ControllerSKU: SR-2006(PUSH

Specifications

Part No. Input Voltage Output Current Output Power Output Type Dimension (mm)
SR-2006 (Push Dim) 12-24VDC 1CH, 10A/CH 100-240W Constant Voltage 46.5*145*16

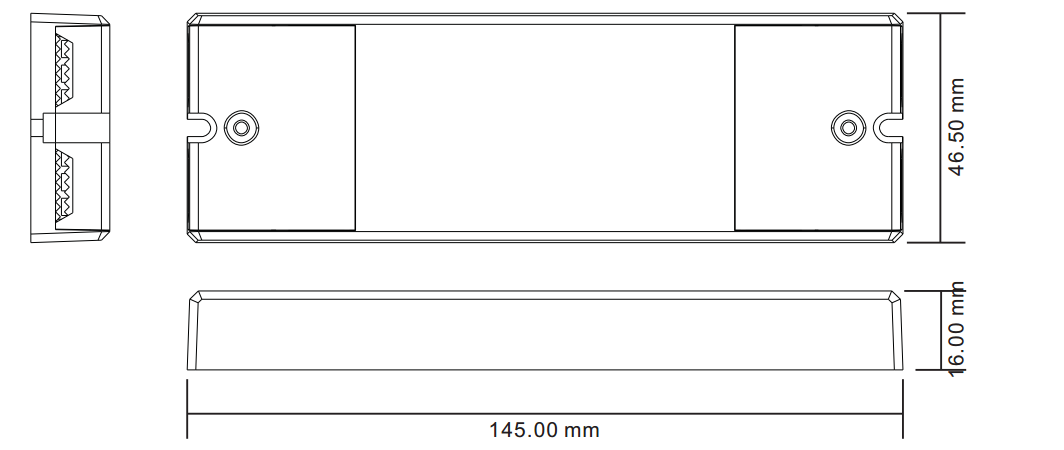

Product Dimension

Product Dimension

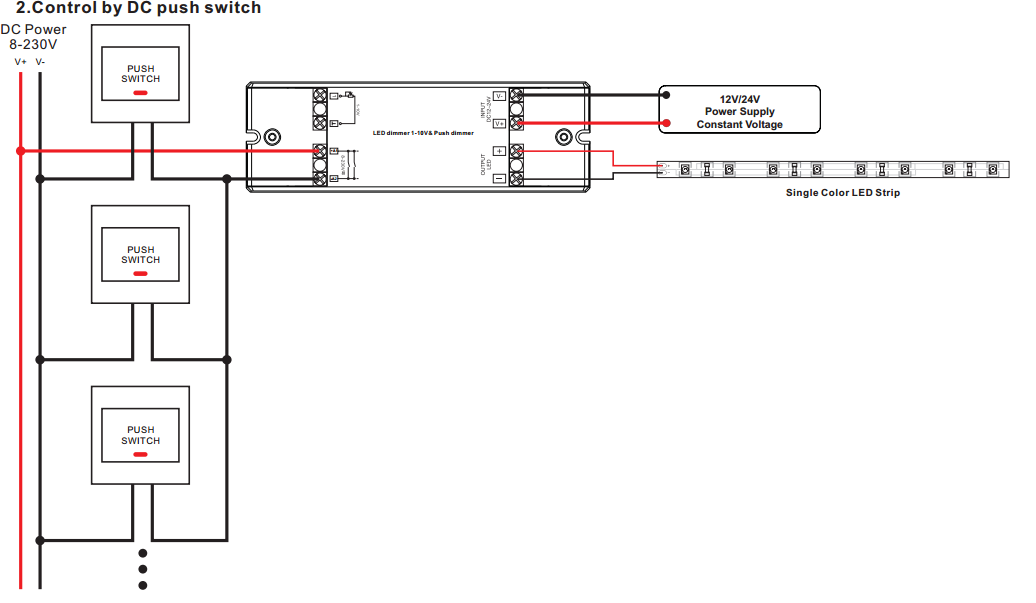

Wiring Diagram For DC Push Switch

Wiring Diagram For DC Push Switch

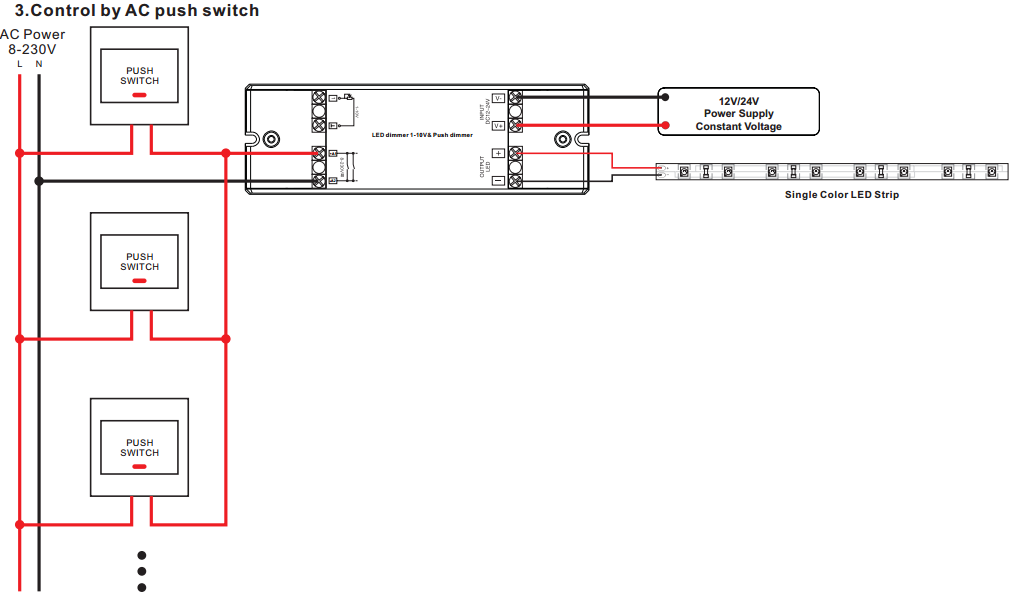

Wiring Diagram For AC Push Switch

Wiring Diagram For AC Push Switch

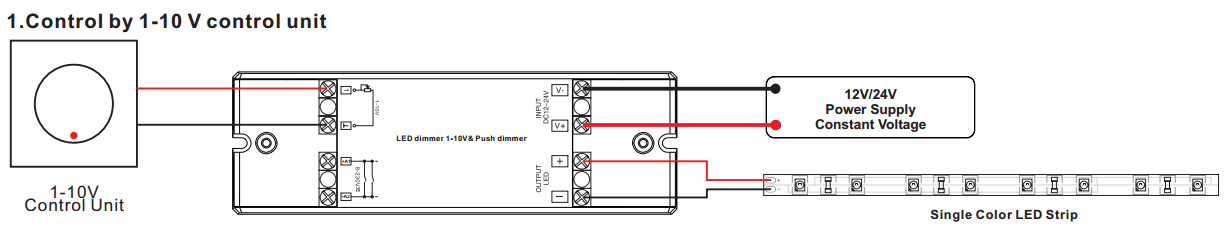

Wiring Diagram For 0/1-10V Signal

Wiring Diagram For 0/1-10V Signal

  • Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
  • Đổi trả dễ dàngTheo chính sách cửa hàng
  • Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật

The SR-2006 (Push Dim) is a ultra-pro mini size push dimmer that supports both AC and DC input push switch and designed with 1 channel 12-24VDC constant voltage output. The push dimmer features great compatibility with universal 8V-230V input push switch with high current output of up to 10A/CH. It also features 0/1-10V dimmer function with 1 channel 0/1-10v signal input and 1 channel PWM output and can be compatible with 0/1-10v signal from other international incorporations.

Key Features

  • Ultra-pro Push Dimmer Function.
  • Supports both AC and DC input push switch.
  • Great compatibility with universal 8V-230V input push switch
  • 1 channel 12-24VDC constant voltage output.
  • Mini size, high output current, up to 10A/CH.
  • 0/1-10V dimmer function with 1 channel 0/1-10v signal input and 1 channel PWM output.
  • Compatible with 0/1-10v signal from other international incorporations.

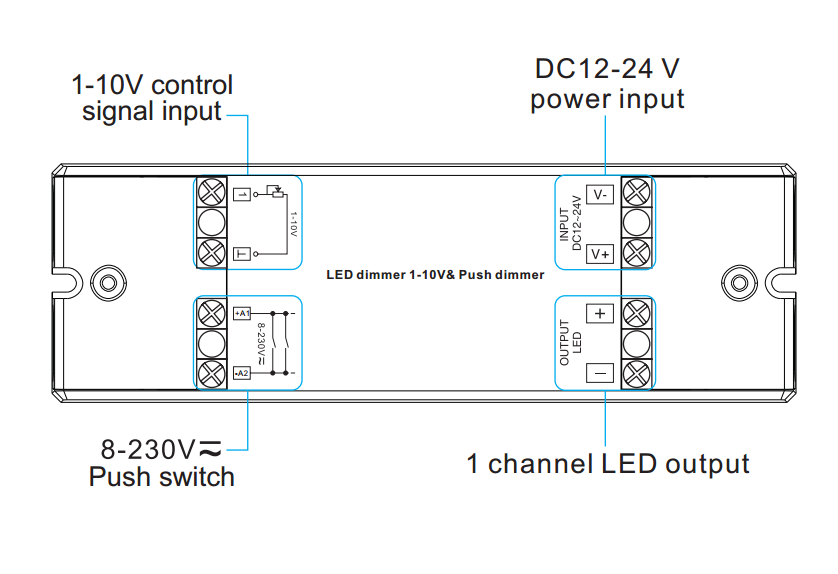

Function Introduction

Function Introduction
