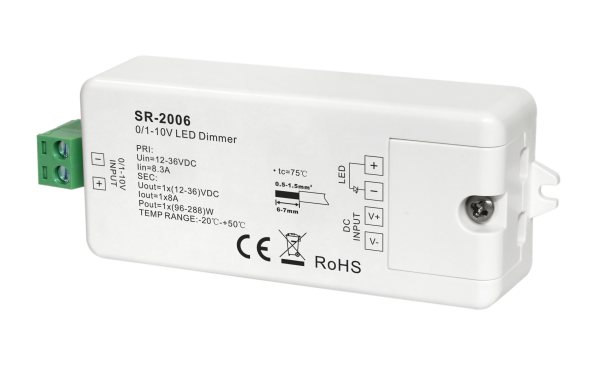

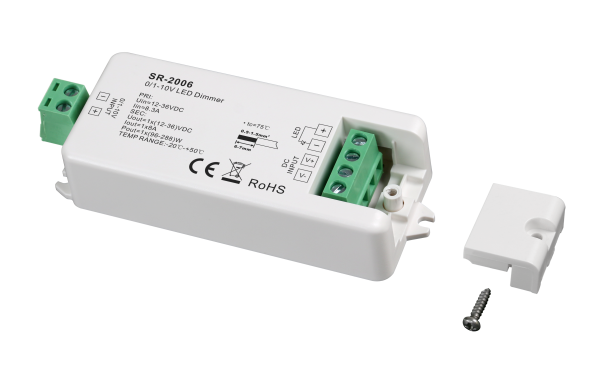

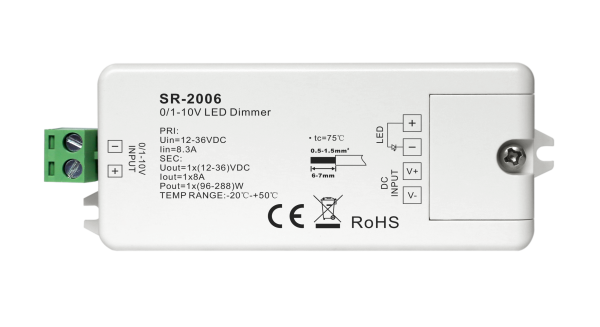

The SR-2006 is a mini size constant voltage 0-10V LED dimmer with 1 channel, 8A per channel output and available in 12VDC, 24VDC and 36VDC, which receives standard 1-10V dimming signal and outputs PWM signal. The 0-10V dimmer is designed with 1 channel 1-10V input and 1 channel PWM output. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering. Besides 0/1-10V signal, the dimmer can be controlled by push switch and potemtiometer as well.

Key Features

• Mini style 0-10V LED dimmer
• Constant voltage 0-10V LED dimmer with 1 channel, 8A per channel output and available in 12VDC, 24VDC and 36VDC
• Analog dim driver, receives standard 1-10V dim signal input
• 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes
• 1 channel 1-10V input and 1 channel PWM output
• 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering
• To work with power repeater to expand output unlimitedly

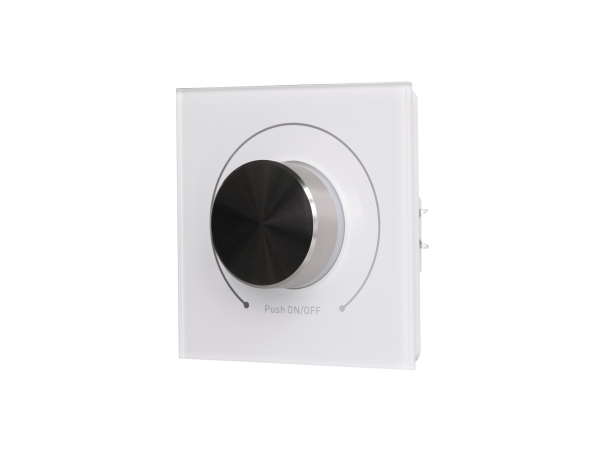

• Compatible with 1-10V dial / Push switch / Potentiometer
