DALI Driver CVSKU: dali-2-certified-75w-dimmable-led-driver-srp-2309-24-75lcvf

Specifications

Part No. Input Voltage Rated Power LED Channel DC Voltage Max. Current Dimension (L*W*H)
SRP-2309-24-75LCVF 220-240VAC Max. 75W 4 Channels 24V DC Max. 3.125A, CH1+CH2+CH3+CH4≤3.125A 306.6*43*30 mm

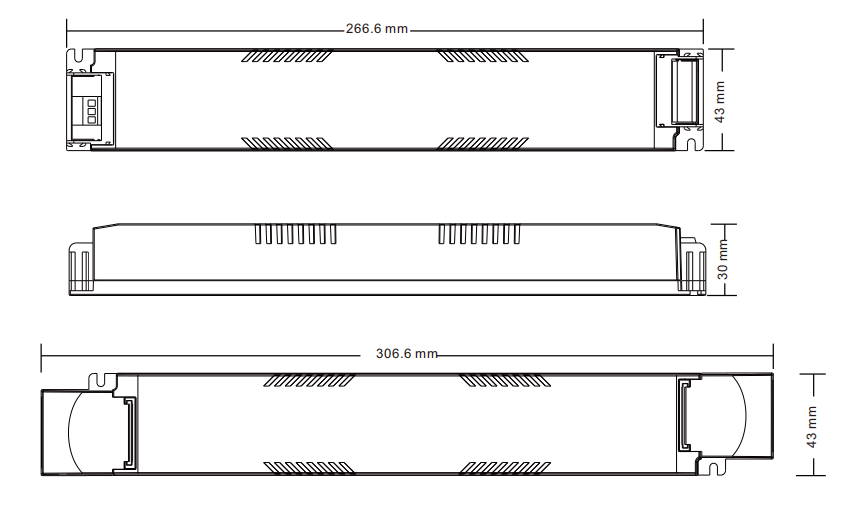

Product Dimension

Product Dimension

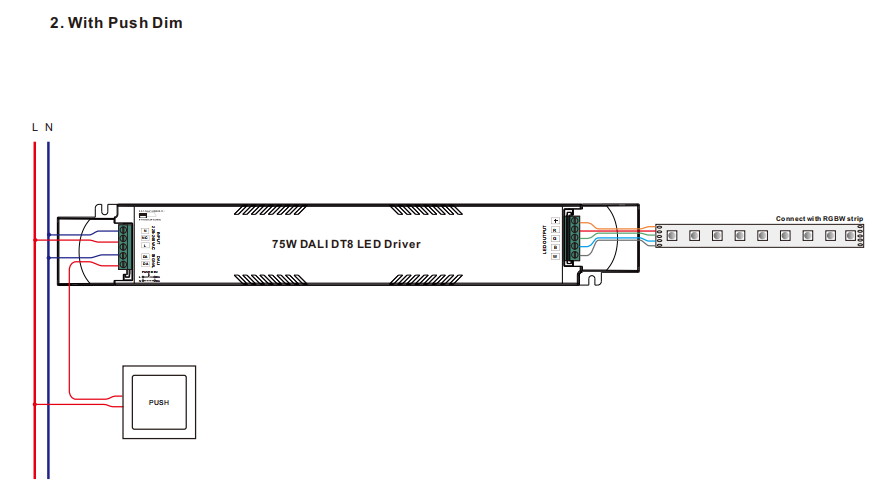

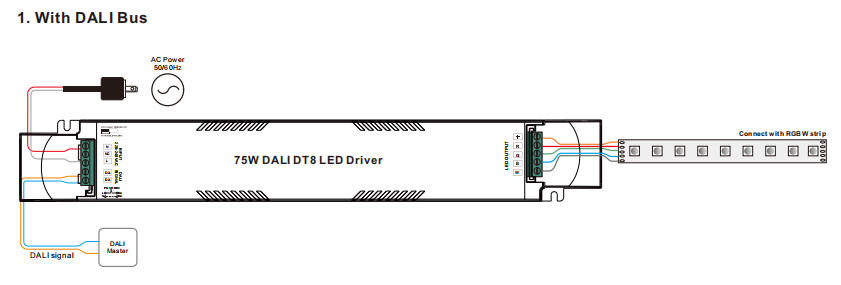

Wiring Diagram

Wiring Diagram

Wiring Diagram

  • Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
  • Đổi trả dễ dàngTheo chính sách cửa hàng
  • Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật

SRP-2309-24-75LCVF is a DALI-2 certified 75W LED driver with 4 parallel connected channels and 24VDC constant voltage output. It is designed with 220-240VAC universal input. Power factor of the driver can be over 0.9 and efficiency is higher than 90%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters. Complying with IEC62386-101:2014, 102:2014, 207 ed.2, this DALI driver is compatible with DALI-2 certified application controllers and control devices.UL and ENEC certification ensures high safety and reliability performance of the driver to be used worldwide.

Key Features

  • DALI-2 certified 75w LED driver
  • UL and ENEC certification
  • 220-240VAC universal input
  • Mains-powered control gear
  • DALI bus current consumption < 2mA
  • 4 channels parallel connected channels output, 24VDC constant voltage
  • Class Ⅱ power supply, full isolated plastic case
  • Rubycon capacitors
  • Built-in active PFC function
  • High power factor and efficiency, PF > 0.9, Efficiency > 90%
  • Complying with IEC62386-101:2014, 102:2014, 207 ed.2, scalable system
  • Supports DALI-2 input devices: Occupancy, light sensors and push buttons
  • Enables to control single color LED lighting
  • Fade time, system failure level, power on level configurable
  • 1 DALI address can be manually assigned via buttons and showed on digital display or automatically assigned by DALI masters
  • Smooth and deep dimming to 0.1% without flickering, no buzzing noise
  • Error report function
  • IP20 rating, suitable for indoor LED lighting applications
