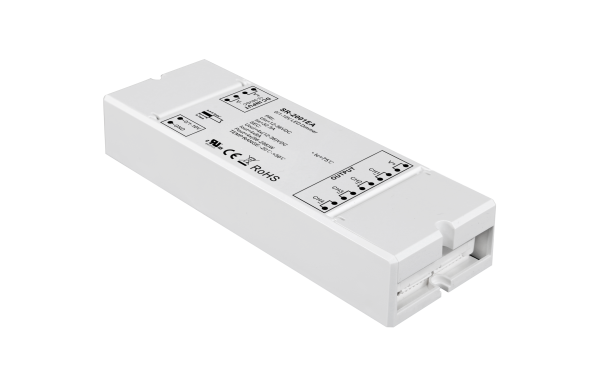

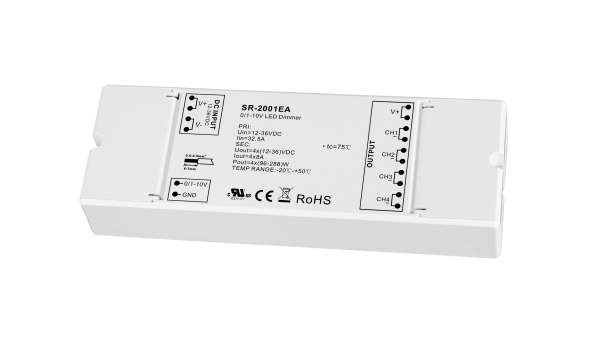

SR-2001EA
0-10V ControllerSKU: SR-2001EA
Specifications
| Part No. | Input Voltage | Output Current | Output Power | Output Type | Dimension (mm) |
|---|---|---|---|---|---|
| SR-2001EA | 12-36VDC | 4CH, 8A/CH | 384-1152W | Constant Voltage | 58*168*28 |

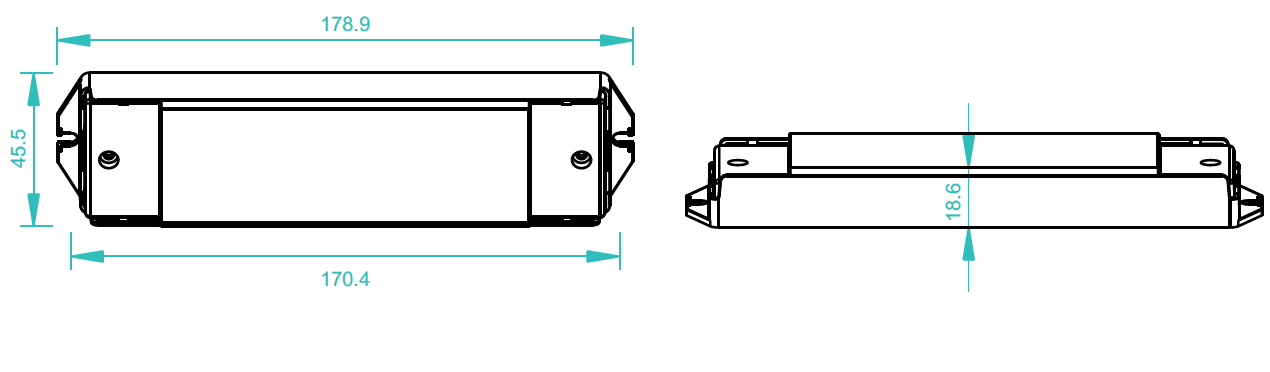

Product Dimension

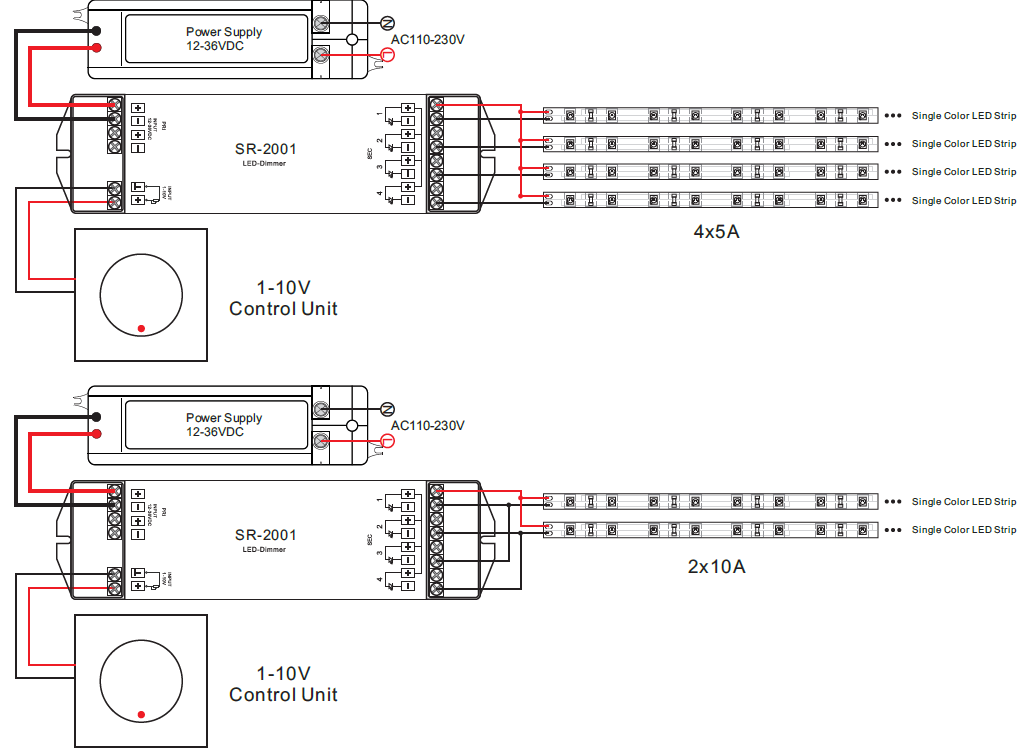

Wiring Diagram
-
免费运输从商店的最小订单
-
轻松退货根据商店政策
-
保修支持激活 & 技术
The SR-2001EA is a constant voltage 0/1-10V LED dimmer with 4 channel, maximum 8A per channel output and available in 12VDC, 24VDC and 36VDC output, which receives standard 1-10V dimming signal and outputs PWM signal. The 1-10V dimmer is designed with 1 channel 1-10V input and 4 channel PWM output. 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes. 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering.
Key Features
- Constant voltage 0/1-10V LED dimmer with 4 channel, maximum 8A per channel output and available in 12VDC, 24VDC and 36VDC output
- Analog dim driver, receives standard 1-10V dim signal input
- 0%-100% dimming range via logarithmic characteristic can be very comfortable for human eyes
- 1 channel 1-10V input and 4 channel PWM output
- 256 levels of grey scale enable the LED dimmer to adjust brightness softly and smoothly without any flickering
- To work with power repeater to expand output unlimitedly
