DALI DT6 Dimmer with Built-in Master Function SR-2303FA3-OLED
SIG Mesh To DALI Converter SR-SV9035A-D
Power AmplifiersSKU: SR-SV9035A-D
Specifications
| Part No. | Input Power |
Input Signal
|
Output Signal
|
DALI Consumption | Note |
|---|---|---|---|---|---|
| SR-SV9035A-D | DALI BUS |
Silvair Bluetooth
|
DALI | Max. 20mA |
Signal Converter
|

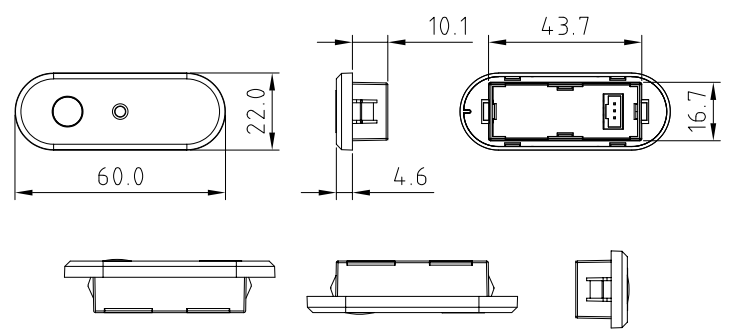

Product Dimension

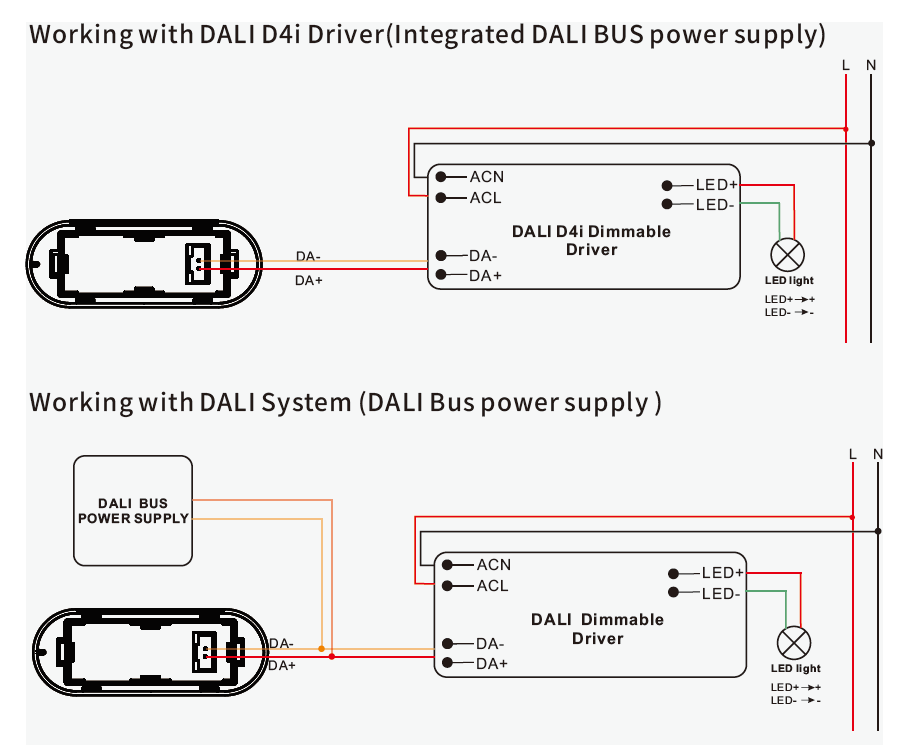

Wiring Diagram

-
免费运输从商店的最小订单
-
轻松退货根据商店政策
-
保修支持激活 & 技术
Key Features
• Bluetooth to DALI signal converter, Bluetooth® mesh network
• Powered by DALI BUS, extremely ease of use with DALI system, especially with D4i driver.
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• All devices on DALI line are broadcast controlled by mobile application
• Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• In typical indoor environment, the typical range for wireless communication is 20m to 25m. Actual range is dependent on field installation
• On-board antenna
• Waterproof grade: IP20
• 5 years warranty
