DALI DT6 Dimmer with Built-in Master Function SR-2303FA3-OLED
Power AmplifiersSKU: SR-2303FA3-OLED
Specifications
| Part No. | Input Voltage | Output Current | Output Power | DALI Consumption | Output type | Dimension (LxWxH) |
|---|---|---|---|---|---|---|
| SR-2303FA3-OLED | 12-48VDC | 4CH, 350mA/CH | 4x(4.2-16.8)W | < 2mA | Constant Voltage | 170×53.4x28mm |
Product Dimension

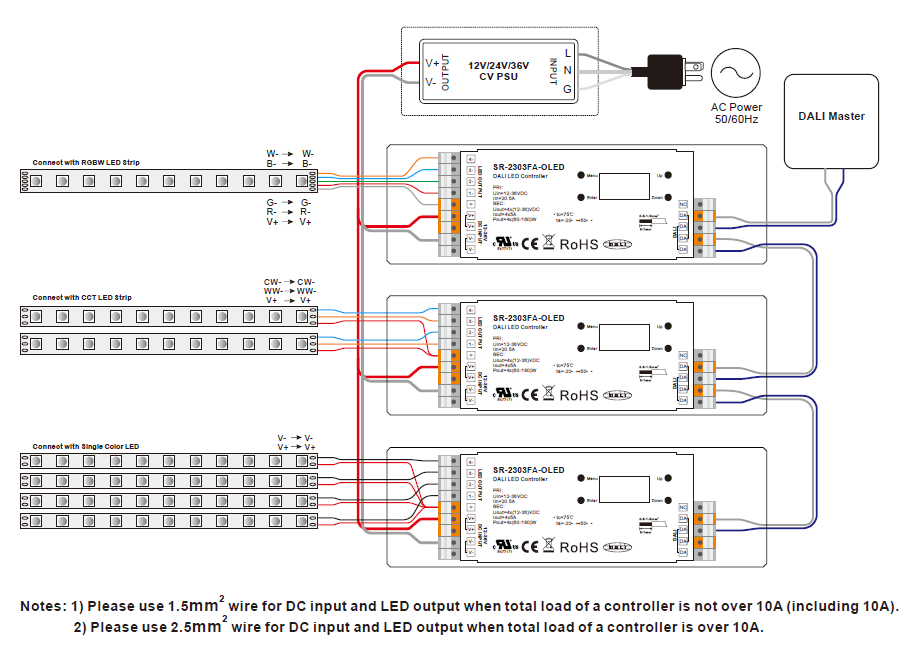

Wiring Diagram
-
Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
-
Đổi trả dễ dàngTheo chính sách cửa hàng
-
Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật
Key Features
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
• Built-in DALI-2 interface, DALI DT6 device
• Match all DALI systems in the market
• DALI DT6 dimmer, 4 channels PWM output, built-in DALI master function
• OLED display interface , easy & fast installation
• No DALI master required for configuration
• Cost & time saving than DALI USB configuration
• DALI address quantity 1-4 settable for 4 PWM outputs
• Enables to address & group 4 PWM outputs individually
• Enables to predefine & recall 16 DALI scenes to 4 PWM outputs individually
• Logarithmic/Linear dimming curve settable, match sensitivity of human eyes
• 250Hz-30KHz PWM frequency settable, flicker free, no noise
• Enables to set a min. level for dimming between this level to max. level
• Enables to manually set output level for 4 PWM outputs individually
• Enables to set fade Time, fade rate, power on level, system failure level
