INGY DALI Fixture-integrated Sensorless Controller SR-IG9035A-D
Power AmplifiersSKU: SR-IG9035A-D
Specifications
| Part No. | Input Power |
Input Signal
|
Output Signal
|
DALI Consumption | Note |
|---|---|---|---|---|---|
| SR-IG9035A-D | DALI BUS | Wirepas (INGY) | DALI | Max. 20mA |
Signal Converter
|

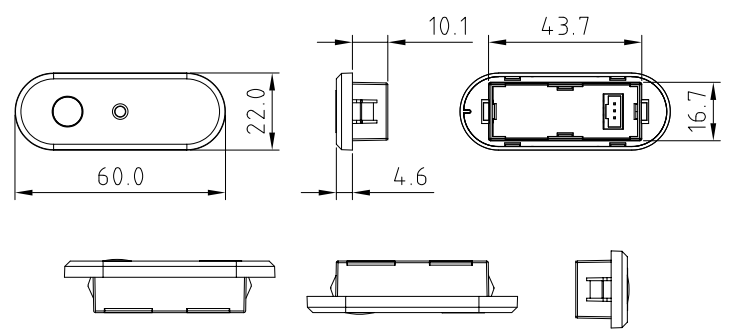

Product Dimension

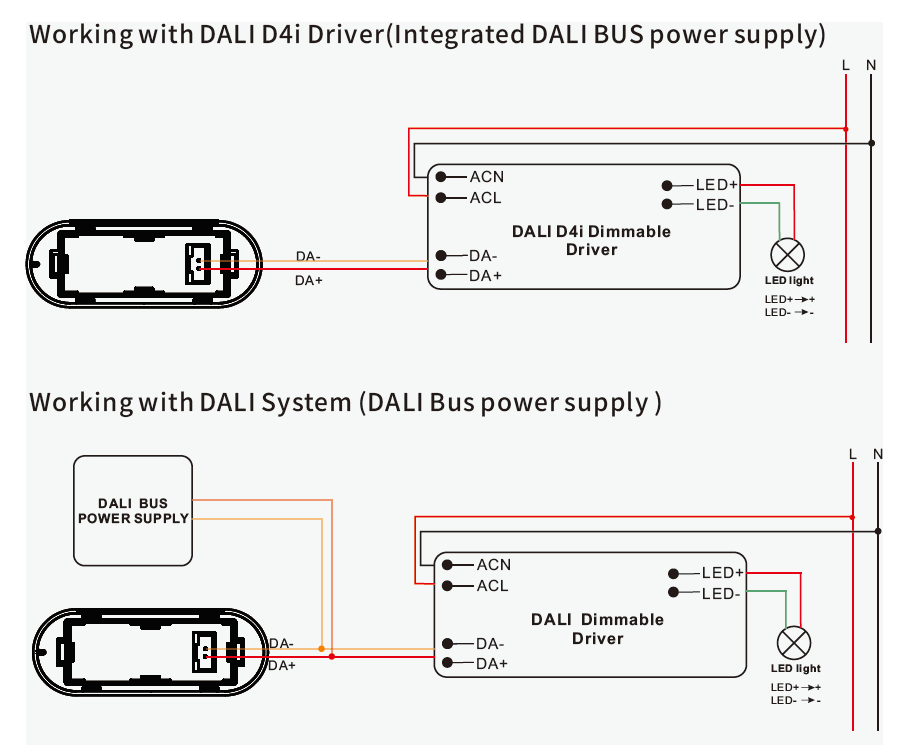

Wiring Diagram

-
Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
-
Đổi trả dễ dàngTheo chính sách cửa hàng
-
Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật
Key Features
• INGY to DALI signal converter, Wirepas® mesh network
• Powered by DALI BUS, extremely ease of use with DALI system, especially with D4i driver.
• Mesh network, which has a much longer control distance, transmits received signals to neighboring devices
• Supporting our kinetic energy switches and EnOcean switches EWSSB and EWSDB
• In typical indoor environment, the typical range for wireless communication is 20m to 25m. Actual range is dependent on field installation
• Available with Magnetic reset (Touch the top part of sensor for 5 seconds)
• On-board antenna
• Waterproof grade: IP20
• 5 years warranty
