The DALI Repeater extends the DALI network range from 300m to 600m with built-in power supply. It ensures bidirectional signal transmission and galvanic isolation between circuits, supporting radial or cascaded layouts. No additional power supply is needed for subordinate DALI lines.

Key Features

• DALI repeater with integrated DALI power supply.
• Device to enhance the maximum DALI cable length from 300m up to 600m.
• Enhancement and Transmission of the DALI-signals (bidirectional).
• Galvanic separation between DALI circuits.

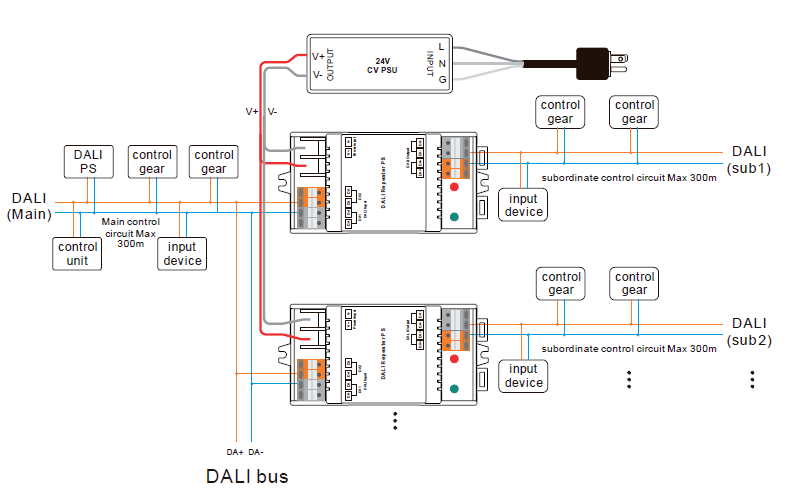

• Either radially arranged network layout or cascaded system mounting operated with single master.
• restricted cascading (Series wiring) of multiple repeaters in multi-master operating mode
• The maximum amount of DALI-devices in the total network is limited to 64, the devices can be divided on the subordinate circuits at will.
• For each subordinate DALI circuits no extra DALI power supply required
