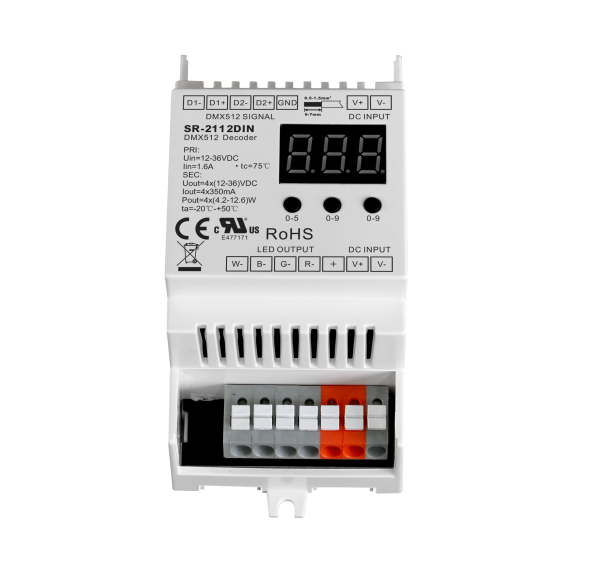

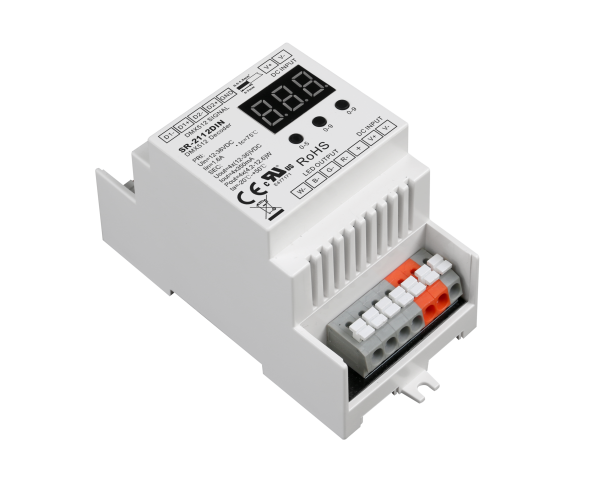

The SR-2112DIN series is a din rail mounted DMX512 decoder which can be switched between 3 channel or 4 channel output. Output current up to 0.35A per channel. DMX address can be set freely and shown on the numeric digital display. The din rail mounted DMX512 decoders can be compatible with our DMX masters such as SR-2811DMX, SR-2201DMX, SR-2812, SR-2816 and others.

It features flicker free dimming with up to 35KHz high PWM frequency output. The dimming curve gamma value can be set between 0.1-9.9. This DMX512 decoder supports RDM function which enables the master controller to remotely write address, modify PWM frequency, modify dimming curve, modify device label etc. It also supports firmware OTA update through the DMX port.

Key Features

• Standard DMX512 compliant control interface.
• Supports RDM function.
• 4 PWM output channels.
• DMX address manually settable.
• DMX channel quantity from 1CH~4CH settable.
• Output PWM frequency 2KHZ.
• Output dimming curve gamma value from 0.1 ~ 9.9 settable.
• DIN rail installation.
• Waterproof grade:IP20.
