DALI ControllerSKU: SR-2422K4-DA2-WSK

Specification

Part No. Typ. DALI Consumption Max. DALI Consumption No. of Instance for Control Device No. of Feedback LED Dimension (mm)
SR-2422K4-DA2-WSK 2mA 10mA 4 programmable push buttons 8 programmable LEDs 86mm x 86mm x 13.3mm

Function Introduction

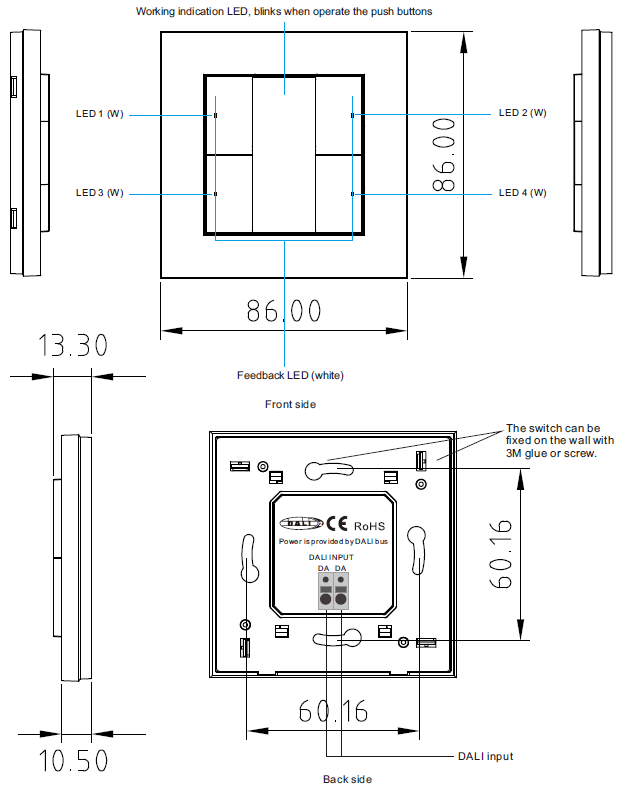

Wiring Diagram

  • Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
  • Đổi trả dễ dàngTheo chính sách cửa hàng
  • Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật

The wall switch SR-2422K4-DA2-WSK is industry first DALI-2 certified DALI-2 control device with 4 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332. The input device supports feedback functionality and provides 8 LEDs. It is suitable for integration and in combination with DALI-2 compliant central control units. The push button device is multimaster capable, multiple modules can be installed on the DALI- line. The DALI-2 input device is DALI bus powered, no extra power supply required. It is easily configurable via DALI-2 compliant central controller USB interface.

This DALI-2 push button is designed with standard 55mm frame, and can be compatible with universal 55mm frames.

Key Features

  • DALI-2 Certfied Input Device
  • DALI-2 control device with 4 push buttons
  • According to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332
  • Supports feedback functionality, provides 8 LEDs
  • Suitable for integration and in combination with DALI-2 compliant central control units
  • Multimaster capable, multiple modules can be installed on the DALI- line
  • DALI bus powered, no extra power supply required
  • Easy configuration via DALI-2 compliant central controller USB interface
  • Easy installation, compatible with universal 55mm frames
