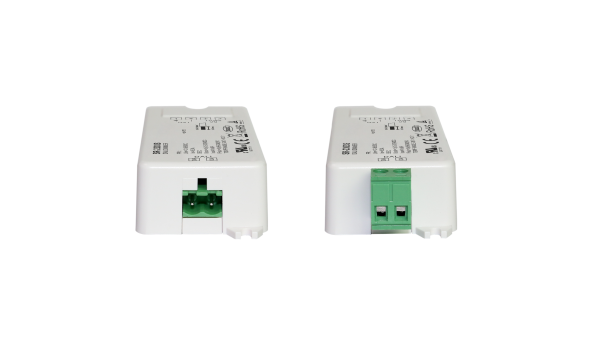

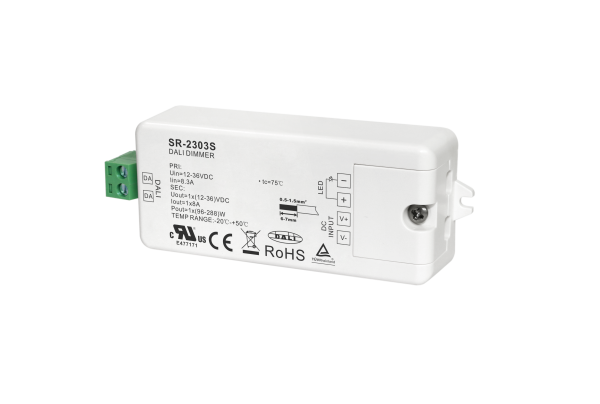

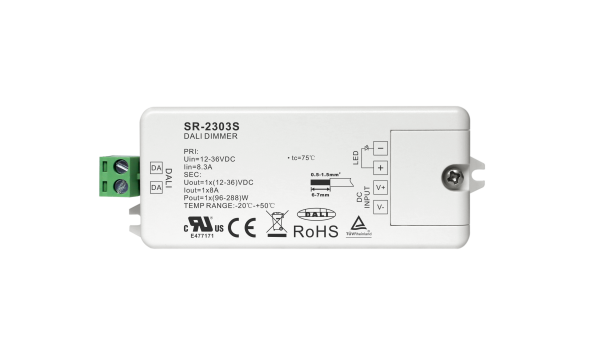

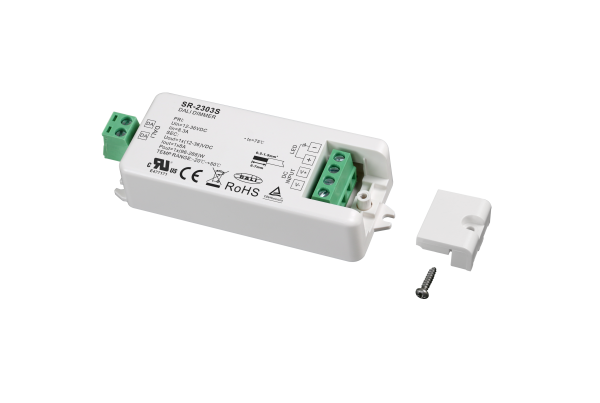

The DALI Dimmer SR-2303S is a mini size constant voltage LED dimming controller with 1 channel 8A per channel output, which complies with standard DALI protocol with 1 DALI address to control 1 channel separately. The DALI address will be automatically assigned by master controllers. 1 DALI address is available for 1 channels work separately. 0%-100% smooth dimming can be achieved by the DALI dimmer via logarithmic dimming, which is perfect for human’s vision.

Key Features

• DALI certified
• TUV CE certified
• Constant voltage DALI LED dimmer with 1 channel, 8A per channel output available in 12VDC, 24VDC and 36VDC output.
• In accordance with DALI standard protocol IEC 62386-102, IEC 62386-207 and in compliance with DALI products from other international incorporation.
• DALI address will be automatically assigned by master controller.
• 1 DALI address, 1 channel work separately.
• 0%-100% dimming range via logarithmic characteristic, perfect for human’s vision.
• To work with LED lights to establish DALI lighting system.
• To work with power repeater to expand output unlimitedly.
