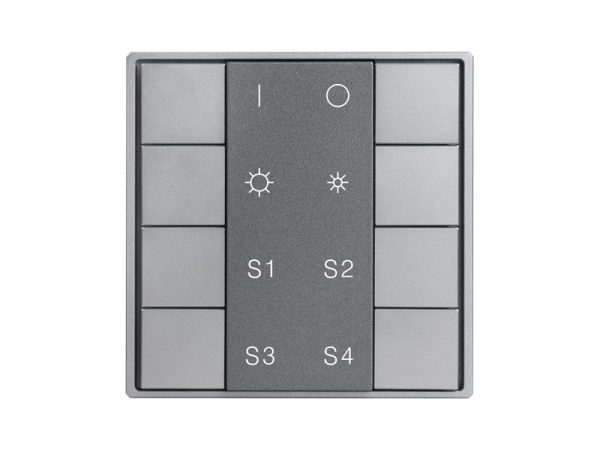

The SR-2422NK8-DIM-G1-S4 is an Ultra Slim Push Button DALI DT6 group&scene controller that controls 1 group address and 4 scene addresses. The group of devices on DALI circuit and scenes to be controlled can be assigned manually by 2 rotary switches on the back. All DALI devices on the circuit can be controlled by the panel through broadcast. The DALI panel enables to switch on/off and increase/decrease light intensity of the selected group. 4 predefined or saved scenes can be assigned and recalled to the selected group. The saved scenes will cover the predefined ones. It is easy to use and no configuration by computer required. The DALI controller can be compatible with all universal DALI master controllers. Compatible with existing standard size EU wall box, the DALI push button controller can be wall mounted easily.

Key Features

• DALI DT6 push button controller
• Ultra slim and luxury design
• Material and finishing color can be customized
• With back lighting design, easy to find even in dark night
• DALI bus powered, no extra power supply required
• Each channel DALI bus can install multiple controllers
• 8 Button Design with Group & Scene Control
• Control 1 Group Address and 4 Scene Addresses
• Control of All DALI Devices on the circuit through Broadcast
• Enables to select and control 1 DALI group from total 16 DALI groups
• Enables to select and control 4 DALI scenes from total 16 DALI scenes
• Switch on/off and increase/decrease light intensity of the selected group
• Enable to save scenes
• 4 predefined or saved scenes can be assigned and recalled to the selected group
• Easy to Use, No Configuration by Computer Required
• Compatible with All Universal DALI Masters
• Easy Installation, Compatible with Existing Standard Size Wall Box
