Power AmplifiersSKU: DMX-E01

Short Description:

  • Item No.: DMX-E01
  • Dim Mode: DMX512/1990



  • 免费运输从商店的最小订单
  • 轻松退货根据商店政策
  • 保修支持激活 & 技术

Brightness Adjust 4ch 3 Areas 4 Scenes DMX Touch Panel Controller DMX-E01

Feature

1. Meet DMX512ㄗ1990ㄘinternational standard protocol
2. Control 4 zones brightness separately or synchronously
3. 4 customized scenes can be saved
4. Each channel can achieve 256 levels brightness adjustment
5. Memory function, remember the last brightness after turn off
6. High sensitive & high stable Glass touch, fast & precise control
7. Interface using tempered glass material, stylish appearance

Technical Parameter



Product Name Brightness Adjust 4ch 3 Areas 4 Scenes DMX Touch Panel Controller
Item DMX-E01
Voltage 5V DC
Power 3.5W
Channels 4
Zones 4
Scenes 4
Indicator lights 9
Dimming DMX512
Product size 86(L) *86 (W)*10 (H) mm
N.G. 110g
Packaging size 145(L)*135(W)*48(H) mm
Work temperature 0⊥ – 50⊥

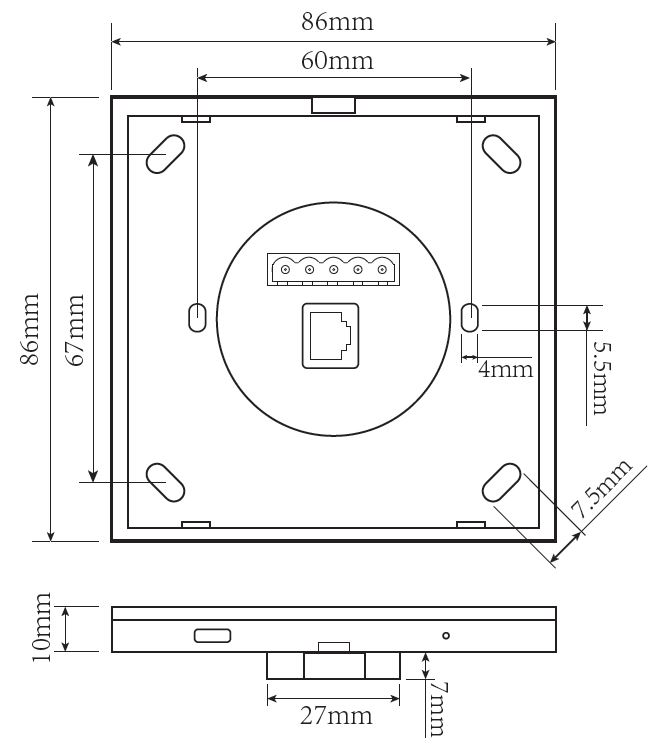

Dimension

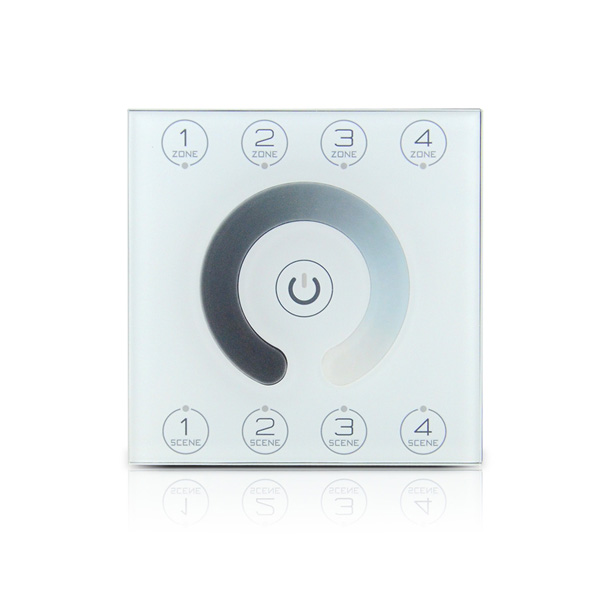

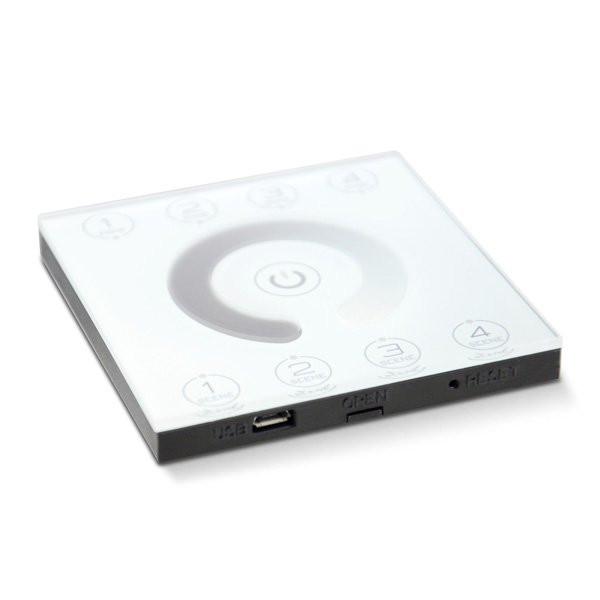

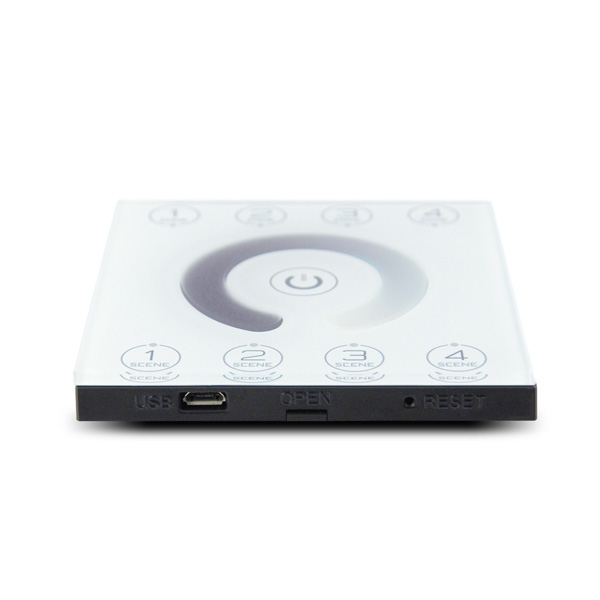

Appearance

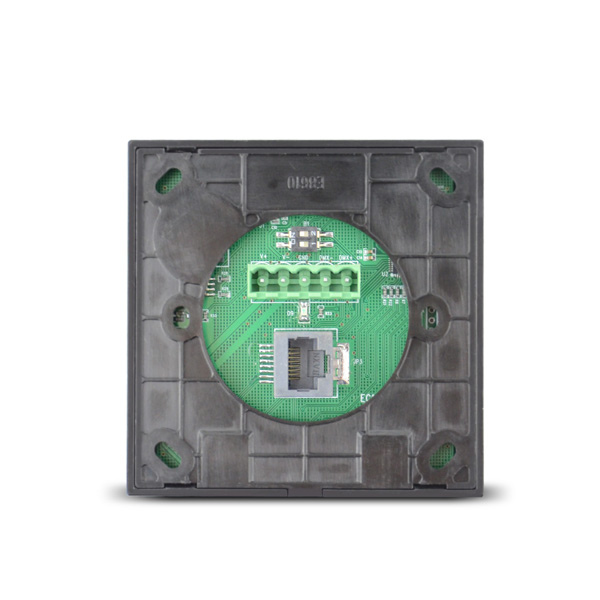

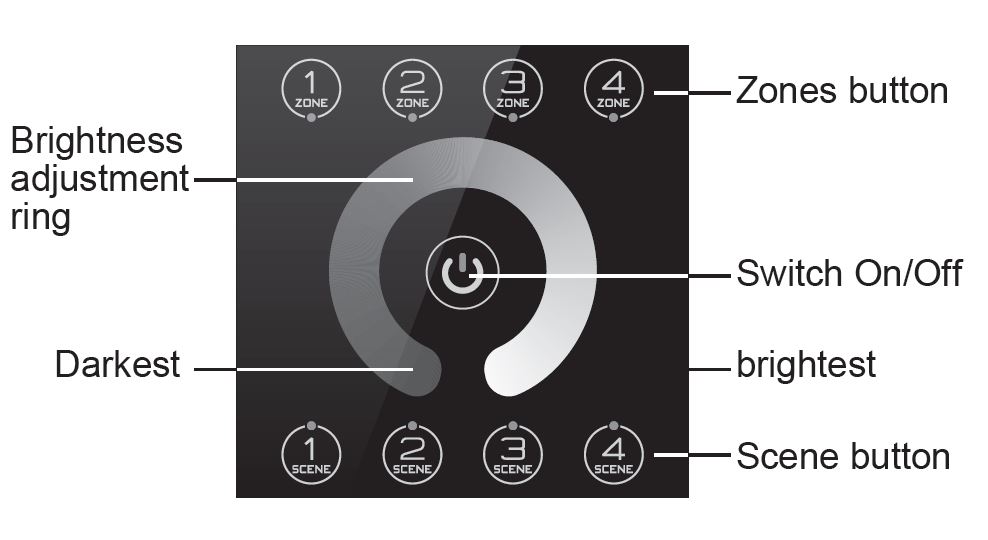

Interface
