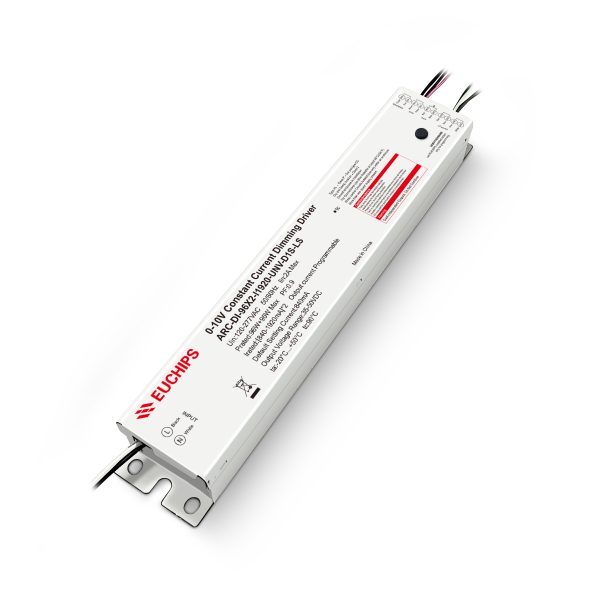

 96W 0-10V CC Driver ARC-DI-96X2-I1920-UNV-D1S-LS

Features

· Universal AC Input Voltage(120-277VAC)
· Metal sheet case
· One isolated 0-10V dimming interface
· Flicker free, excellent camera compatibility
· Dual Output, Class2, Class P
· Operating temperature: -20℃~+50℃
· Comply with IEEE1789, UL8750
· Programmable
Output current(1mA step)
Dim to off
· Aux power, 12V/200mA
· ANSI C62.41 Category B 6kV

Technical Parameters

Model NO.

Rated Input Voltage

Max Output power

 Default Output Current

Output Current Range

Output Voltage Rated

 Aux Power

ARC-DI-96X2-I1920-UNV-D1S-LS

120-277Vac

96W+96W max.

 840mA*2

(840-1920mA)*2

35-50VDC

 12V



INPUT Parameter

Min

Typ.

Max

Note
Input Voltage

120Vac

–

277Vac

 –
Input Voltage range

108Vac

–

305Vac

 –
Rated Frequency

47Hz

 50/60Hz

63Hz

 –
Input current

–

–

2A

 @120Vac full load
Inrush current

–

–

25A

 120Vac, cold start (25℃)
 Power Factor

>0.95

–

–

 @120Vac 100% load

>0.9

–

–

 @277Vac 100% load
 T.H.D.

–

<10%

 @120Vac 100% load

–

<15%

 @277Vac 100% load
 Efficiency

–

86-88%

–

 @120Vac Vout=50V, Iout=1920mA, steady state

–

88-90%

–

 @277Vac Vout=50V, Iout=1920mA, steady state
Turn On Delay Time

–

–

0.75S

 Cold Start, @120VAC



 Output Parameter

Min

Typ.

Max

Note
Programmable Output Current

840mA

–

1920mA

 Per Channel
Output current tolerance

–

–

5%

 1500-1920mA
Output Voltage

35V

–

50V

 The derating begins when the input voltage is less than 108 ±10%Vac
Output Power

–

–

192W

 Total Power, See “Operating window”
Line Regulation

–

–

3%

 –
Load Regulation

–

–

5%

 VOUT from MIN. to MAX.
Ripple Current

–

–

10%

  Full Load, (Iomax-Iomin)/(Iomax+Iomin)
Output Current Overshoot

–

–

10%

 Turning Power ON
0~10V or Resistor Dimming Dimming Curve Linear. please see “Dimming curve”.
Source Current on 0~10V Dimming Pin

–

200uA

–

 –
Light Off

–

0.7±0.1V

–

 –
Dimming Voltage for Full Bright

–

8.5V

–

 –
Dimming Range

1%

–

100%
External Resistor Value at Full Bright

–

100

–

 kΩ
Leakage Voltage

–

–

20

 Voltage between DIM- and Ground
Programming  The driver can be programmed through Programming Port.

·Output current(1mA step)

·OTP point of driver, LED thermal protection












Programming Port

 the driver can be easily connected to a digital control system, to set the driver(eg: output current , dimming level, and so on).
Programming software EU Configure Tool
Programming tool EU-PROG
Operating voltage

–

5V

–
Auxiliary source Output Power

–

–

2.4W

–
Output Voltage

–

12VDC

–

–
Voltage tolerance

–

–

8%

–



Protection Parameter

Min

Typ.

 Max

Note
Over Voltage Protection

–

–

 60V Recover automaticallyafter fault conditions is removed.
 Over Temp. Protection

–

 90℃

–

 Programmable.Current foldback at hotspot greater than TOTP
Short Circuit Protection Recover automatically after fault conditions is removed.
Environment Storage Temperature

-40℃

–

 85℃ Total Power, See “Operating window”
Ambient Operating Temperature (ta)

-20℃

–

 50℃
Max. Case Temperature (tc)

–

–

 90℃ Hot spot on case
Operating Relative Humidity (Ha)

10%

–

 90% Non-Condensing
Acoustic Noise

–

–

 24dBA Measured from 1 m w/o dimmer.
Cooling Convection Cooling
IP Rating Dry and damp UL approved
Others Life Time 50kHrs

–

–

 Full Load, 80℃ case temperature,
MTBF 200kHrs

–

–
Warranty 5 Years Warranty at Tc ≤80°C
Flicker IEEE 1789,Title 24
Safety Compliance CUL/UL UL8750, CAN/CSA-C22.2 No. 250.13



Electromagnetic Compliance EMC Requirements Standard Conditions
EMI Emissions FCC Title 47 Part 15B Class A
Voltage Fluctuations and Flicker IEC61000-3-3
IEC 61000-4-2 ±8kV air Discharge, ±6kV Contact Discharge
ANSI C82.77-2015 Category B, 6kV，Comb wave
IEC 61000-4-11 >95% dip, .5 period; 30% dip, 25 periods; 95%reduction, 250 periods
 IEC 61000-4-4 ± 2kV Direct couple to Line input, 5kHz repitition rate, 15mS duration, 300mS period. 7 coupling paths, 1 minute per path (14 total combinations)
Note: Unless otherwise specified, all the above parameters are measured at ambient temperature of 25℃ and rated voltage.

Packaging

Driver quantity (pcs)

Layer

Weight (kg)

 Outer dimensions of Carton L*W*H(mm)

20

4

TBD

 TBD
