Power AmplifiersSKU: SR-2421-TR5-V

 Specifications

Input Power
Input Signal
Output, Aux. Power
 Output Signal Output Current Dimension (L*W*H)
100-277VAC
0-10V
12VDC, Max. 80mA
Phase cut
Max. 2.1A
82.5*55*31mm

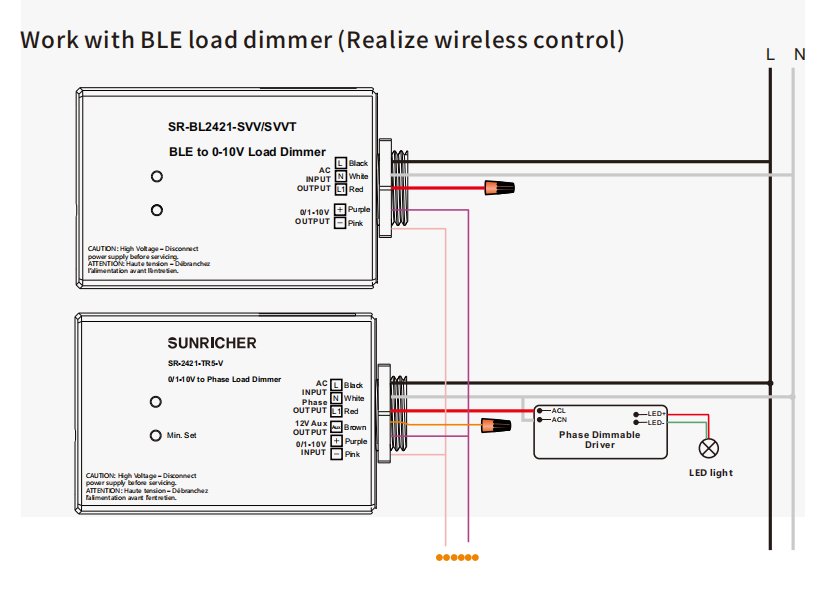

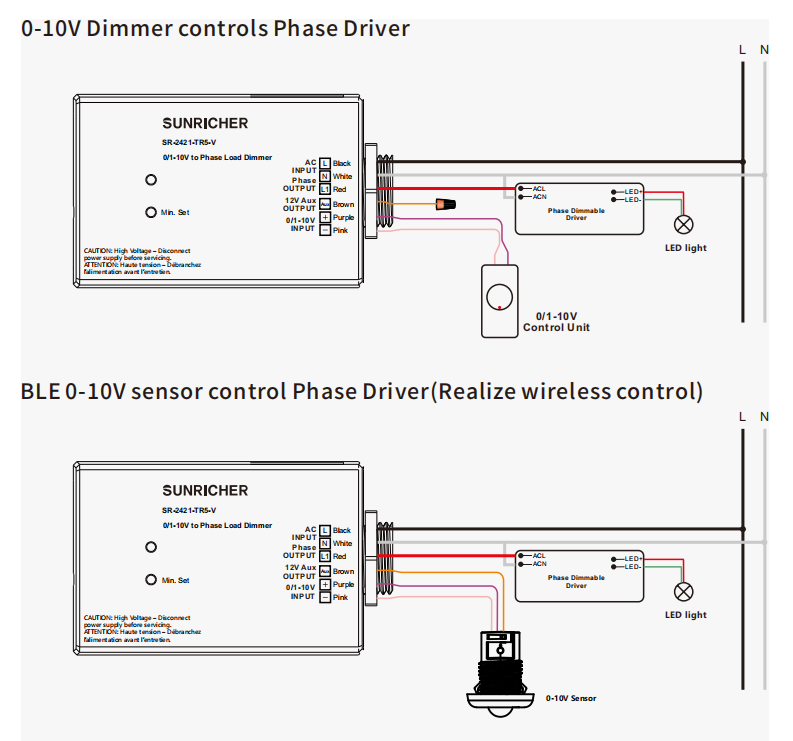

Wiring Diagram

Wiring Diagram

Wiring Diagram

  • Free shippingFor orders from the minimum of the shop
  • Easy returnAccording to the shop policy
  • WarrantySupport activation & technical

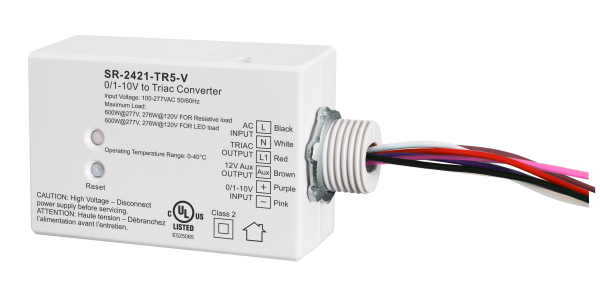

0-10V to Triac Phase-Cut Dimmer (Signal Converter), with additional 12V auxiliary power supply. Input signal is 0-10V, output signal is Phase Cut.

Key Features:
• 0-10V to Phase load dimmer, signal converter
• Standard 1/2” knockout design, easy to integrated to a junction box
• Built-in 0/1-10V interface
• Compatible with universal 0/1-10V signal
• Integrated 12V Aux power supply output enables users to connect sensors and IoT applications.
• Work with our BLE to 0-10V load dimmer to realize more convenient and flexible control
• Support reverse edge(trialing edge) type driver
• UL listed. Category: PAZX (Management Equipment, Energy). UL 2043 Plenum Rated
• Waterproof grade: IP20
• 5 years warranty
