Technical Specifications
Power supply AC 100V~240V
Power consumption <3W
Network protocols GPS synchronization protocols
Data output TTL level signal & RS-485×2 channels
Single-line: 1024 points×2 channels
Standard DMX512: 168 points×2 channels
Extended DMX: 336 points×2 channels
Breakpoint continuation: 960 points×2 channels
Supported LED models UCS512A/B/C0/C4/CN/D/E0/EH, SM16500/511/512/522/17500/17512/17522/18522, SW-D/U, Hi512A0/A4/A6/AD/AE, TM512AB3/AL1/ACx/AD, QED512P, GS8511/512/513/515, WS2811/12/18, UCS1903/2903/5603, TLS3001, TM1804/1809/1908/1913/1914, SM167xx, DMX512AP, XT1506S, P9883

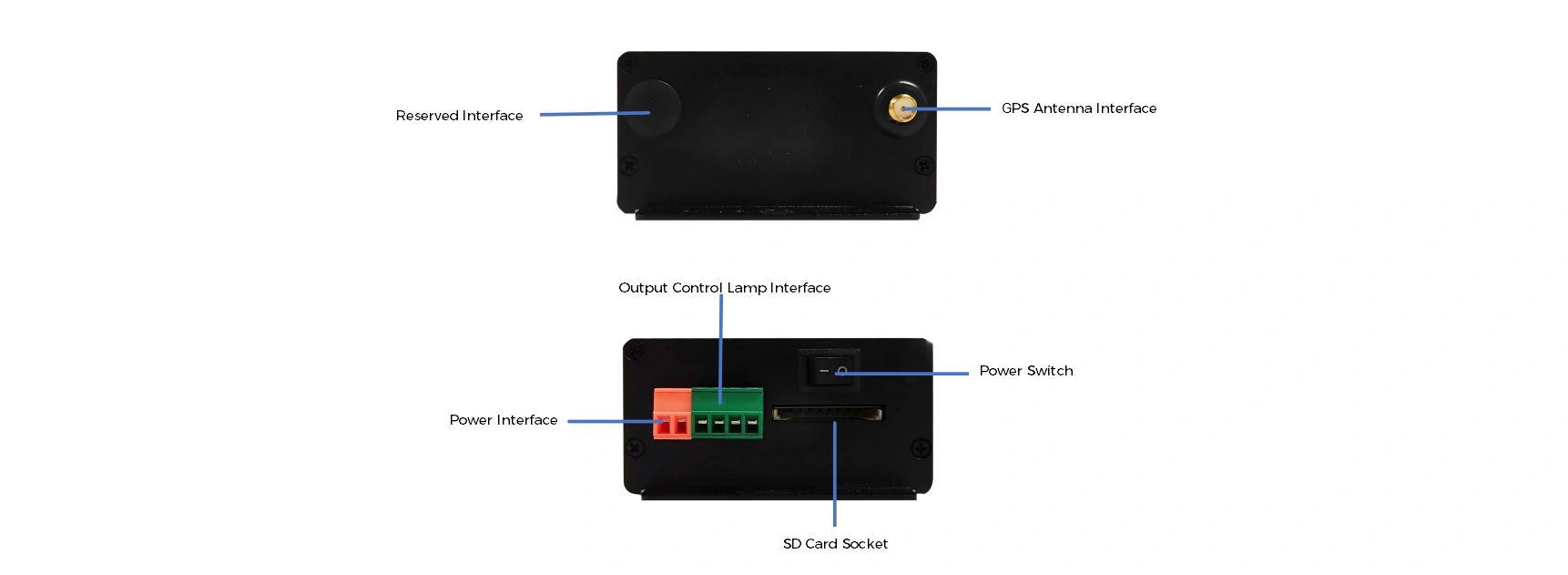

Port configuration 2×TTL signal outputs (independent channels)
Wireless connectivity 4G module with built-in IoT card (China region only)
Shell material Iron
Operational interface Digital display + 3 control buttons + SD card slot
Dimensions 193mm × 122mm × 45mm (L×W×H)
Operating temperature -15℃~60℃
Relative humidity ≤50% RH (non-condensing)
IP rating IP20
