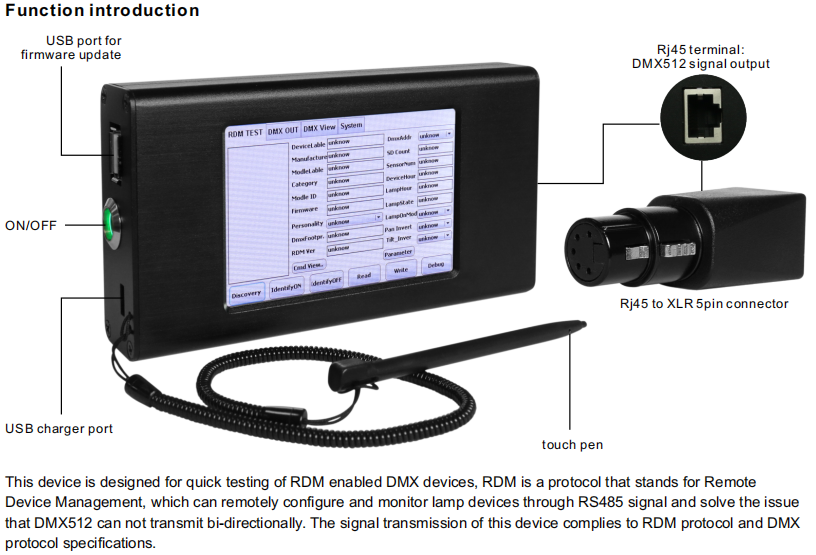

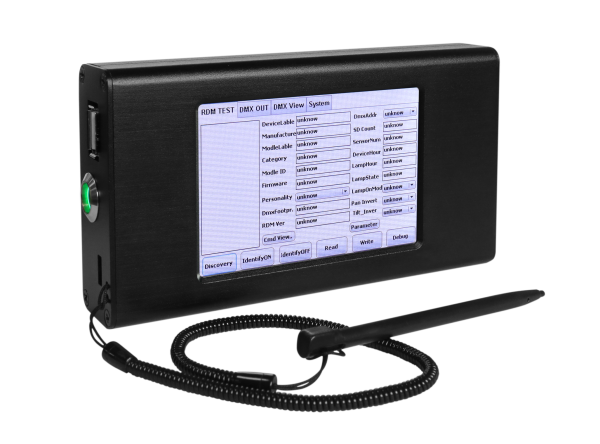

The SR-2100RDM-Tester is is designed for quick testing of RDM enabled DMX devices, RDM is a protocol that stands for Remote Device Management, which can remotely configure and monitor lamp devices through RS485 signal and solve the issue that DMX512 can not transmit bi-directionally. The signal transmission of this device complies to RDM protocol and DMX protocol specifications.

Key Features

• Portable and powerful RDM tester
• Simple and easy to use interface
• Max. 512 DMX channels output, RJ45 port for DMX signal transmission
• Suitable for large project testing, no complicated DMX master controller required
• Supports RDM standard protocol testing
• Supports RDM user customized PID testing
• Supports manual DMX output
• Supports DMX signal view
• Built-in 2000mAh rechargeable lithium battery
• Supports firmware updating through USB port
• Supplied with a touch pen for smooth touch control
• Supplied with RJ45 cable

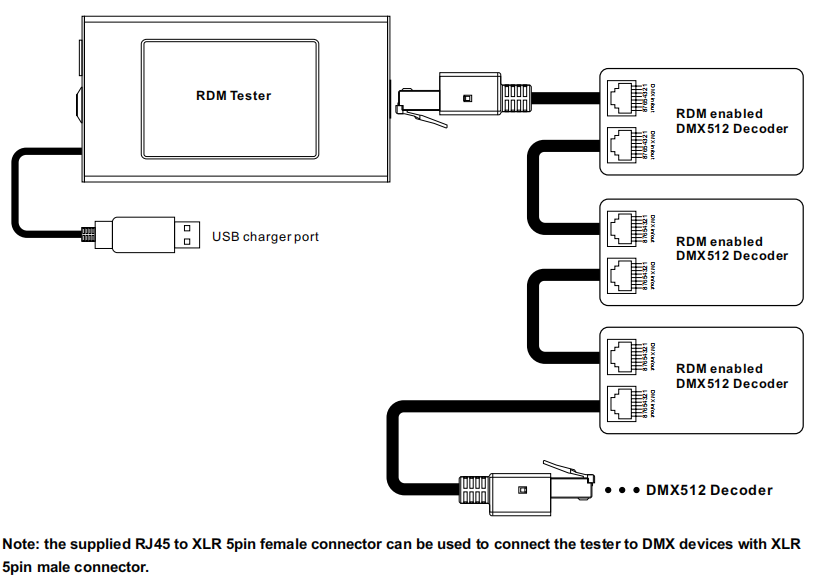

• Supplied with an RJ45 to XLR 5pin connector
• Supplied with USB cable for charging
