SR-2847(US)
SR-2108HT(WP)
DMX Decoder for AC 120V 220V LED Strip
SR-2847(US)
DMX ControllerSKU: SR-2847(US
Specifications
| Part No. | Power Supply | Output Signal | Power consumption | Size(LxWxH) |
|---|---|---|---|---|
| SR-2847(US) | 100-240VAC | DMX512 signal | < 15 mA | 75x120x41mm |

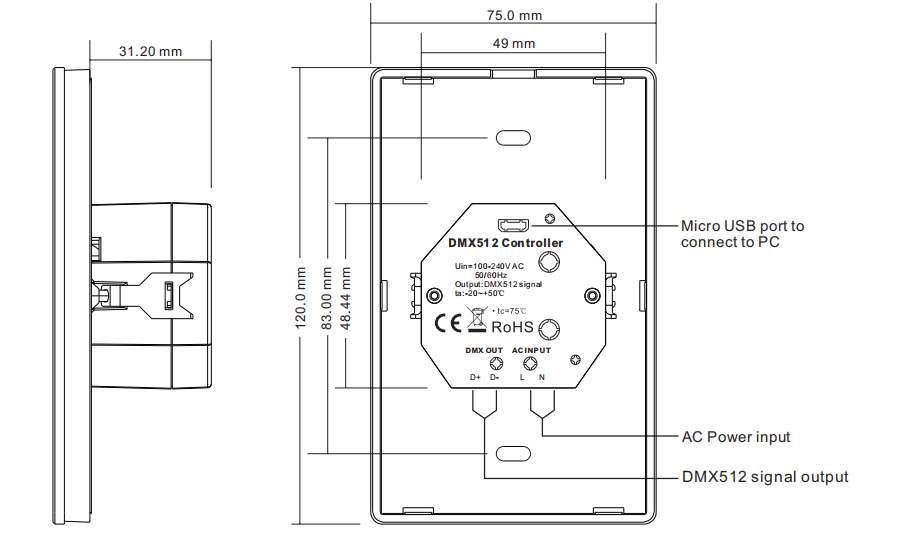

Product Dimension

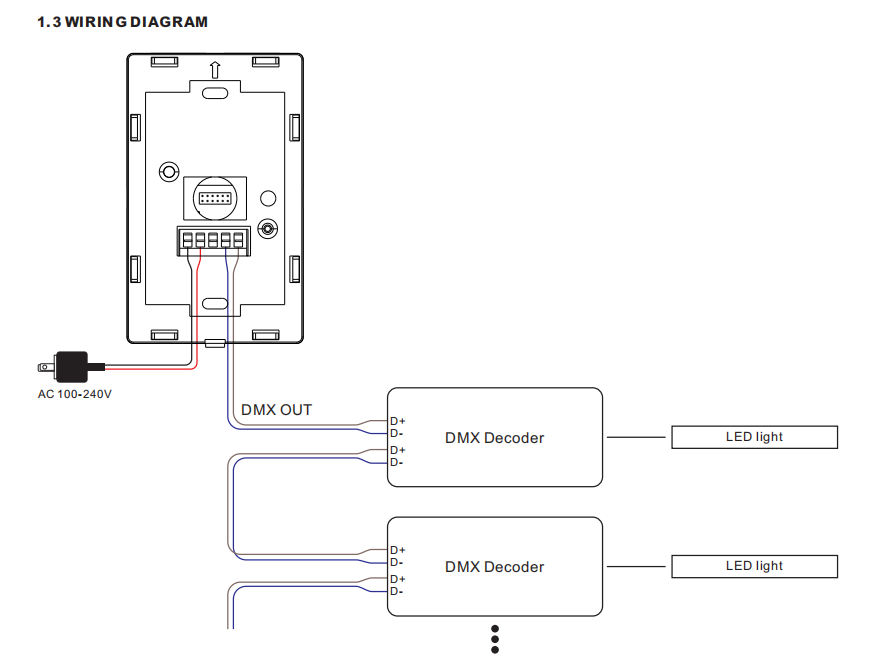

Wiring Diagram
-
Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
-
Đổi trả dễ dàngTheo chính sách cửa hàng
-
Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật
Product Description
The DMX512 control panel is a master controller designed to control the DMX decoders. The DMX512 control panel is a master controller designed to control the DMX decoders. It can control 512 DMX channels, and enables to configure max. 16 groups or zones with max. 8 scenes, 24 time schedules and 8 cycle schedules configured to each group. The panel supports 5 different types of DMX load: Dim, CCT, RGB, RGBW, RGB+CCT. Moreover, this device has a five-year warranty.
Key Features
• A master controller designed to control the DMX decoders.
• Can control 512 DMX channels.
• Enables to configure max. 16 groups or zones with max. 8 scenes, 24 time schedules and 8 cycle schedules configured to each group.
• Supports 5 different types of DMX load: Dim, CCT, RGB, RGBW, RGB+CCT.
• 5 years warranty
