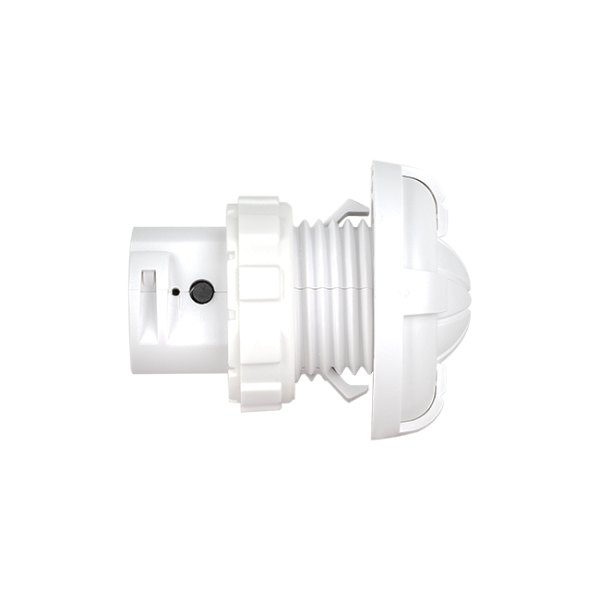

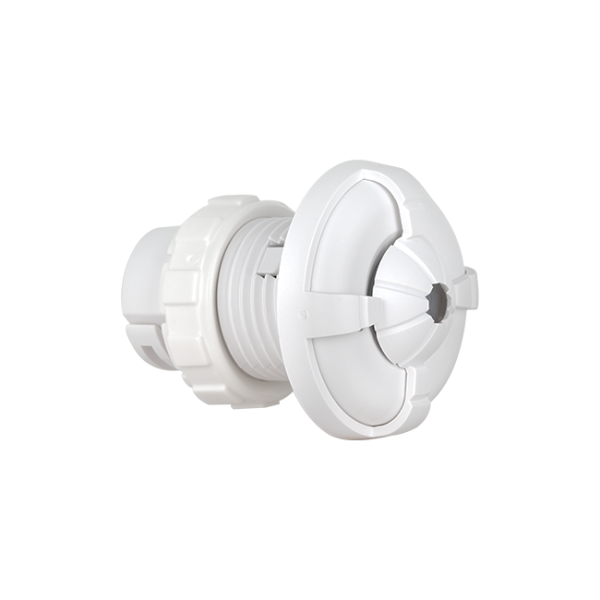

The fixture integrated multi-sensor is DALI-2 device which combines motion sensor and light sensor. The device performs motion detection and measures illuminance level. The DALI-2 multi-sensor can work with DALI LED drivers or luminaires and it is directly integrated into the fixture with 1/2″ knockout. The result is increased occupant comfort and significant energy savings that meet the most demanding building energy codes. The sensor is suitable for low bay applications which need sensor based automation.

Key Features

•  DALI-2 & D4i certified

•  PIR motion detection

• Motion sensor instance type 3 (303)

• Illuminance measuremen

• Light sensor instance type 4 (304)

•  Autonomous sensor-based control
