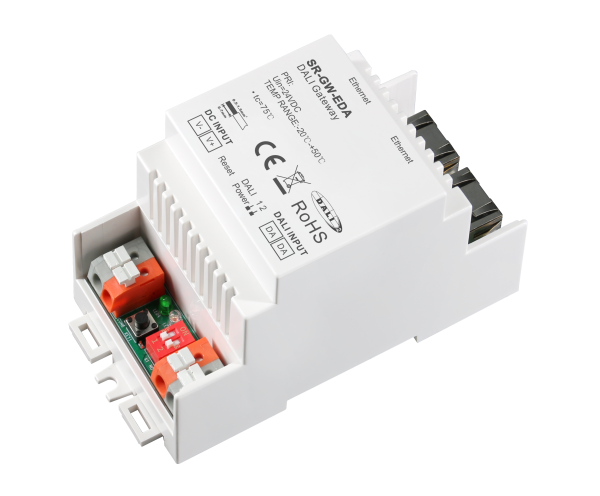

DIN Rail Ethernet (IP) DALI Gateway SR-GW-EDA
Power AmplifiersSKU: SR-GW-EDA
Specifications
While built-in DALI PS enabled
|
Input Voltage
|
Number of
DALI Channel
|
Output Voltage
|
Output Current
|
Ambient Temperature
|
Size(LxWxH) |
|---|---|---|---|---|---|
| 24VDC | 1 |
12-22.5VDC
|
Guaranteed supply current: 230mA
Max. supply current: 250mA
|
-20℃ ~ +50℃
|
110x53x65 mm
|
While built-in DALI PS disabled
|
Input Voltage
|
Number of
DALI Channel
|
DALI Current
Consumption |
Ambient Temperature
|
Size(LxWxH) |
|---|---|---|---|---|
| 24VDC | 1 |
Max. 2mA
|
-20℃ ~ +50℃
|
110x53x65 mm
|

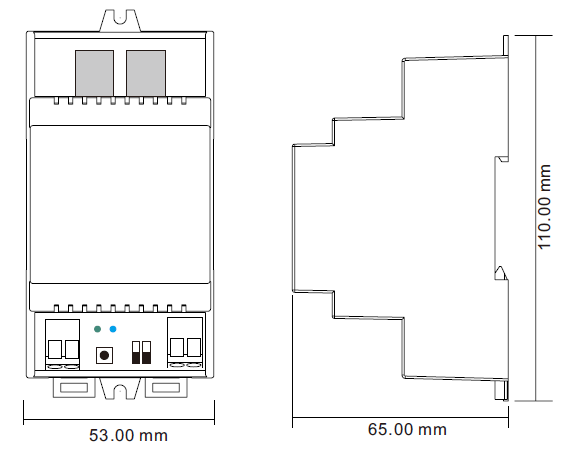

Product Dimension

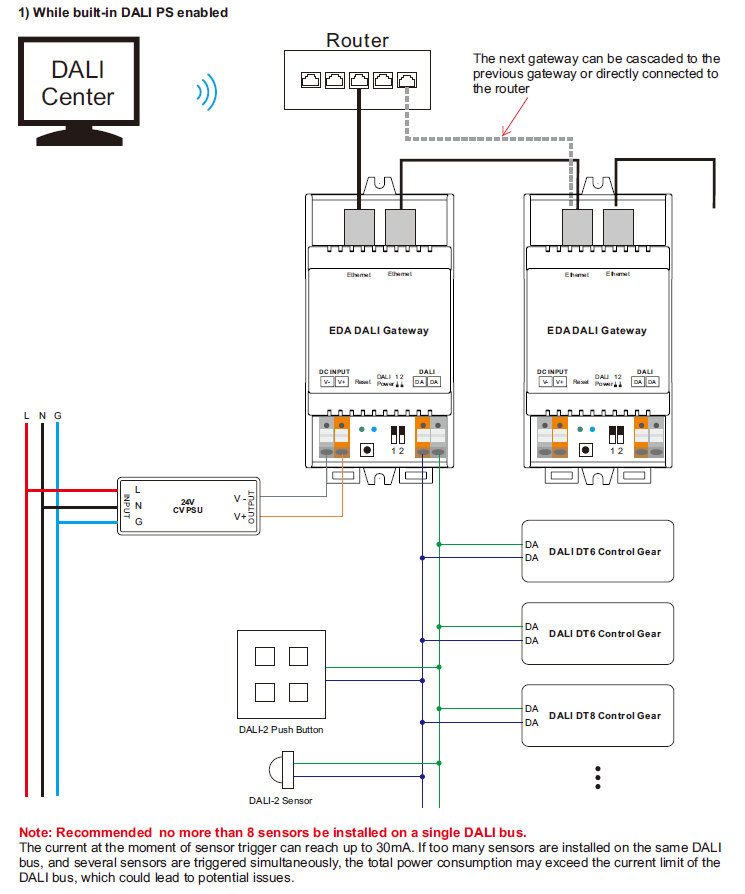

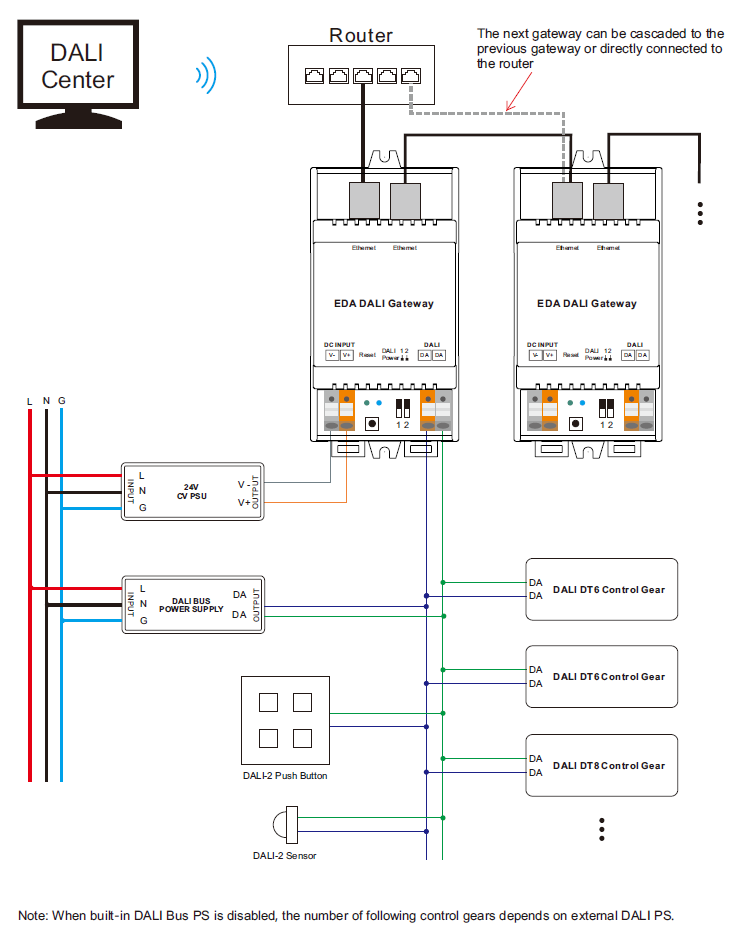

Wiring Diagram
-
Free shippingFor orders from the minimum of the shop
-
Easy returnAccording to the shop policy
-
WarrantySupport activation & technical
DALI Center is a platform deployed on local computers designed by Sunricher for public building lighting management. Its interface is simple, and installation and deployment are straightforward. It enables individual or centralized control of lighting in different areas and provides an energy analysis interface. Through timing and sensor automation features, it helps improve energy efficiency.
Key Features
- Supports DT6, DT8 Tc, DT8 XY, DT8 RGBWA device types
- Supports addressing, grouping and scene configuration for max. 64 control gears (DALI-1 and DALI-2)
- Built-in 250mA DALI PS, no extra wiring required
- Easy & quick configuration through DALI Center PC application
- Built-in battery, built-in RTC, supports timer task configuration
- Waterproof grade: IP20
- 5 years warranty
