SR-2704B
SR-2108B-M25
Pro DMX Decoders (support RDM)/with standard alone master mode

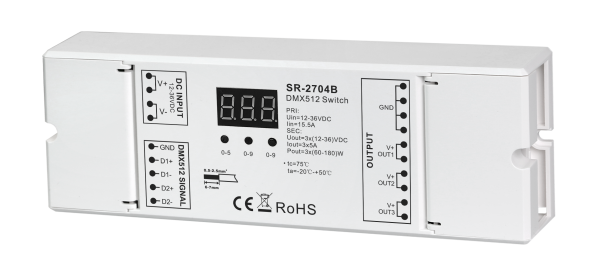

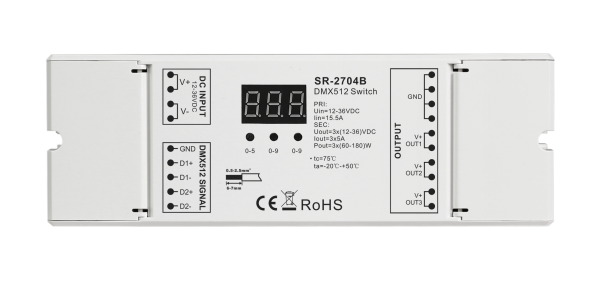

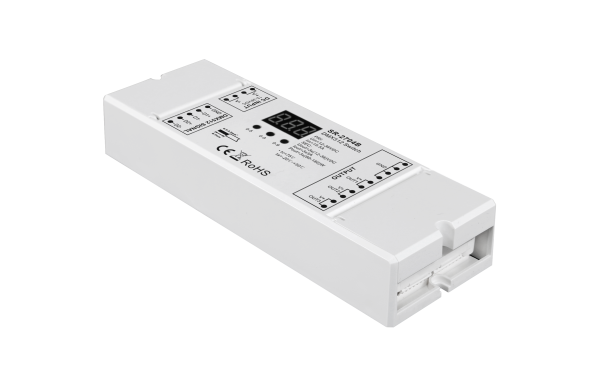

SR-2704B
DMX ControllerSKU: SR-2704B
Specifications
| Part No. | Input Voltage | Output Current | Output Power | Output Type | Dimension (mm) |
|---|---|---|---|---|---|
| SR-2704B | 12-36VDC | 3CH, 8A/CH | 3*(96-288)W | constant voltage | 59*170*29 |
Product Dimension for SR-2704B

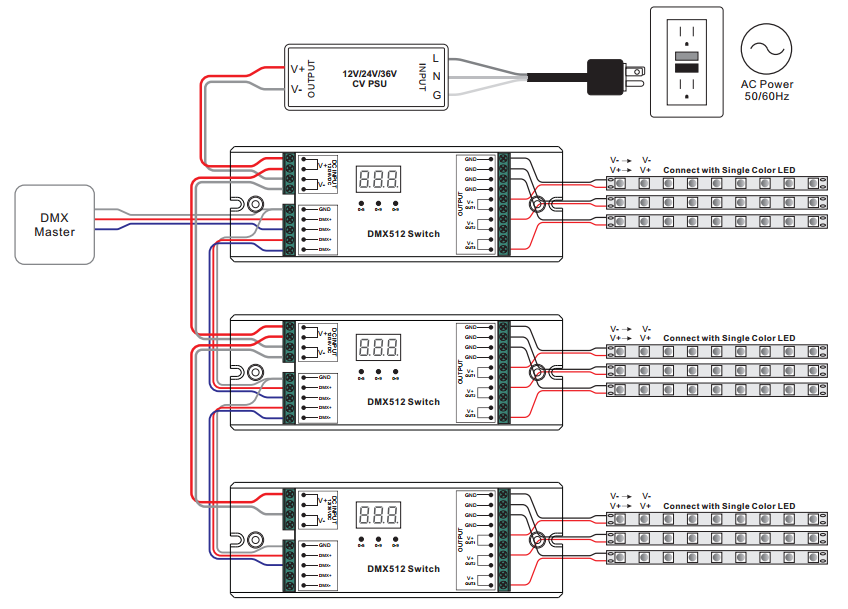

Wiring Diagram for 2704B
-
Free shippingFor orders from the minimum of the shop
-
Easy returnAccording to the shop policy
-
WarrantySupport activation & technical
The SR-2704B is a DMX512 switch that complies with standard protocol DMX512(1990) with DC 12-36V input and 3 channel output. The DMX address can manually assigned and shown on the numeric digital display or automatically assigned by the master controller. DMX512 master controller is to control power on/off to cater for unwanted dimming lighitng system. The DC DMX512 switch is compatible with a variety of DMX512 master controllers.
Key Features
- DMX dimmer switch
- Comply with standard protocol DMX512(1990) and compatible with DMX products from other international incorporations
- DMX address can be manually assigned and shown on the digital numeric display or automatically assigned by master controller
- DMX512 master controller is to control power on/off to cater for unwanted dimming lighitng system
- Compatible with a variety of DMX512 master controllers
