SR-2701S-DT7

SR-2701S-DT7

DALI ControllerSKU: SR-2701S-DT7

Specifications

Part No. Switching Voltage
Power input
 Output Current
Type of
contact
 DALI Consumption Dimension (mm)
SR-2701S-DT7
100-240VAC
100-240VAC, 50/60Hz
Resistive load: max.4.3A
Capacitive load: max.1.3A
Inductive load: max.4.3A
1 normally
closed
 <3mA 45×45.5×20.3

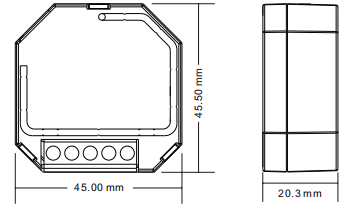

Product Dimensions

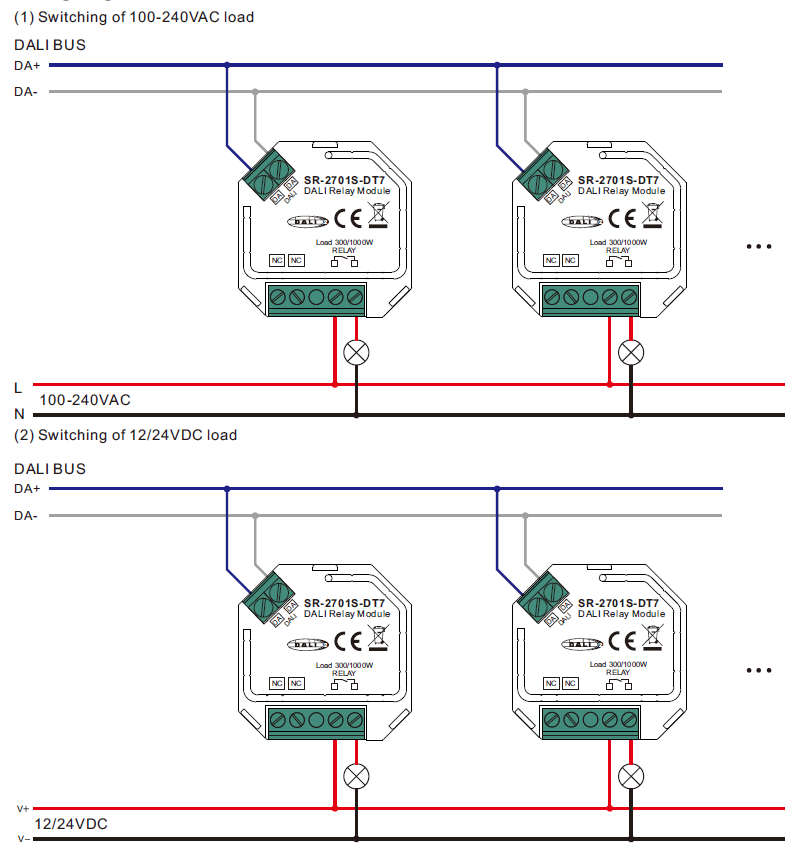

Wiring Diagram

Wiring Diagram

Wiring Diagram

  • Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
  • Đổi trả dễ dàngTheo chính sách cửa hàng
  • Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật

The SR-2701S-DT7 is a DALI-2 relay module which is capable of switching both AC and DC loads. The DALI RM enables to integrate existing loads which do not have DALI input into DALI circuit and switch on/off the loads.

Key Features

  • DALI-2 relay module
  • 100-240VAC power input
  • 1 DALI address can be assigned by DALI master controller
  • Compatible with DALI and DALI-2 versions
  • Compliant to IEC 62386-208
  • Loads that do not have a DALI input can therefore be integrated in the DALI circuit
  • >1 channel actuator (switch) with DALI-2 input
  • Switching voltage 100-240VAC
  • Mini Size, easy to be Installed into a standard wall box
  • Compliant DALI device type 7
  • 5 years warranty
  • Waterproof grade: IP20
