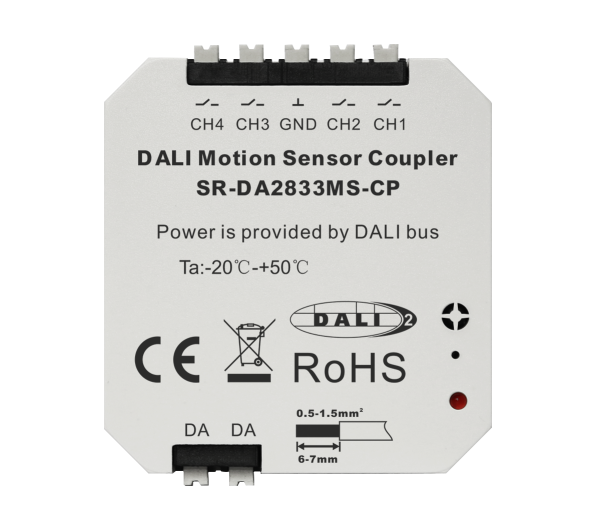

The DALI Motion Sensor coupler SR-DA2833MS-CP is DALI-2 certified DALI-2 control device with 4 channels dry contact input for normal motion sensors according to IEC62386-101, IEC62386-103 and IEC62386-301.

Key Features

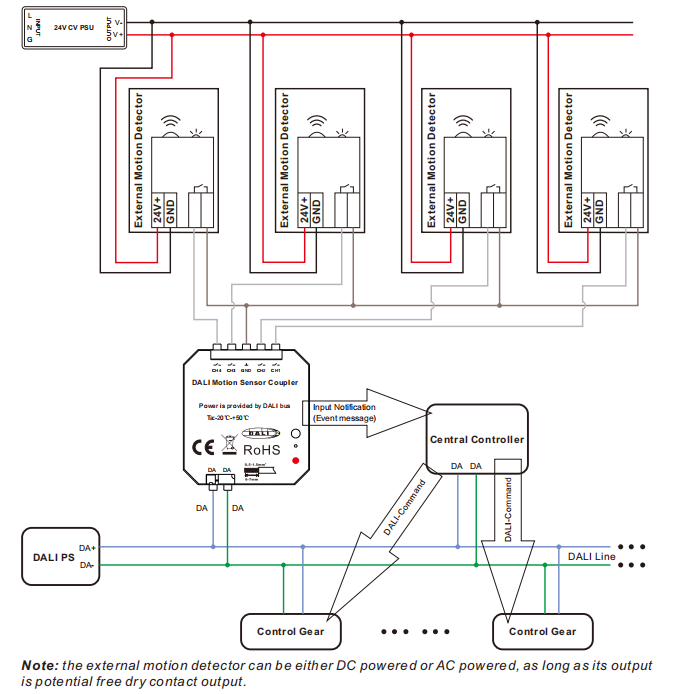

• DALI-2 control device that integrates external motion detectors into DALI system
• Four DALI-2 motion detector instances are available for an easy integration
• In compliance with IEC62386-101, IEC62386-103, IEC62386-303, 4 occupancy sensor instances
• Suitable for integration and in combination with DALI-2 compliant central control units
• Multimaster capable, multiple modules can be installed on the DALI- line
• DALI bus powered, no extra power supply required
• Easy configuration via DALI-2 compliant central controller USB interface

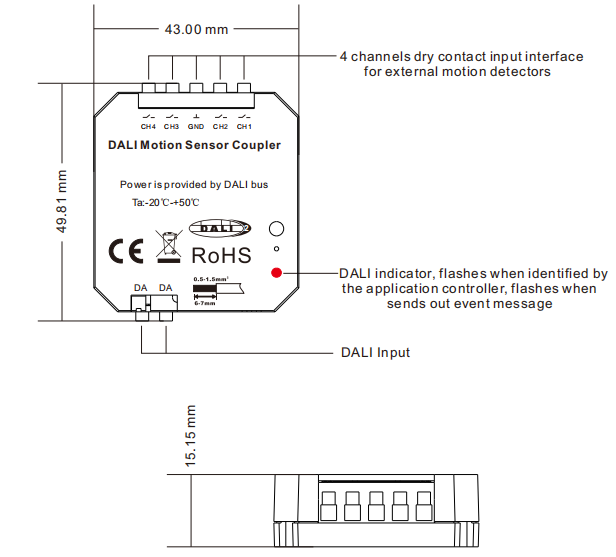

• Easy installation: the device can be installed in a flush-mounted installation box
