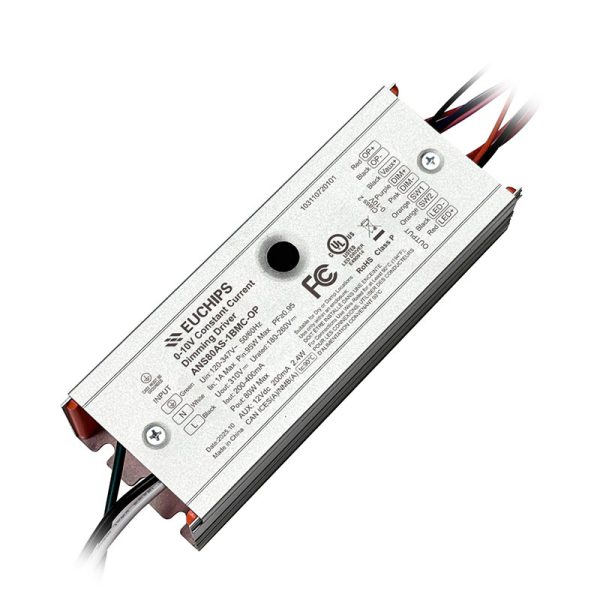

80W 200~400mA*1ch 0/1-10V CC Driver ANS80AS-1BMC-OP

80W 200~400mA*1ch 0/1-10V CC Driver ANS80AS-1BMC-OP

Power AmplifiersSKU: ANS80AS-1BMC-OP

Short Description:

  • Item No.: ANS80AS-1BMC-OP
  • Output Power: 80W

  • Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
  • Đổi trả dễ dàngTheo chính sách cửa hàng
  • Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật

80W 200~400mA*1ch 0/1-10V CC Driver ANS80AS-1BMC-OP

Features

  • Input voltage range:108-380Vac
  • Supports isolated dimming (0-10V active signal, PWM signal, resistor)
  • Adjustable Output Current (AOC) with Potentiometer
  • High Efficiency up to 96.0%
  • Auxiliary Power: 12VDC, 200mA(AS Version)
  • Support for external DIP switches to adjust power
  • Support for external light control switch
  • Protection:UVP,SCP,OVP, OTP
  • Input surge protection: Differential mode: 6kV, Common mode:6kV(ANSI/C82 .77-5-2017)
  • 5-year warranty
  • Safety according to UL8750

Models

Model Number Input Voltage
Range		 Max.0utput
Power		 0utput Voltage
Range		 0utput Current
Range		 Default
Current		 Effciency
[Typ.]		 PF
[Typ.]		 THD
[TyP.]
ANS80AS-1B* 108-380Vac 80W 180-260Vdc 020-0.40A 0.37A 96.0% 0.98 7%

Note:
[1]. All specifications are measured at 25′c ambient temperature, input voltage 27ac, and the typical value tested by full load
[2].AS means 0-10v/pWM/res dimming and 12v auxiliary source.

*Means Additional Function

 Models 0-10V/PWM/Res dimming  Auxiliary12V/200mA  DlP switch   Light control switch
 ANS80AS-1B  √  √
 ANS8OAS-1BMC  √  √  √
 ANS80AS-1B-0P  √  √  √
 ANS80AS-1BMC-0P  √  √  √  √

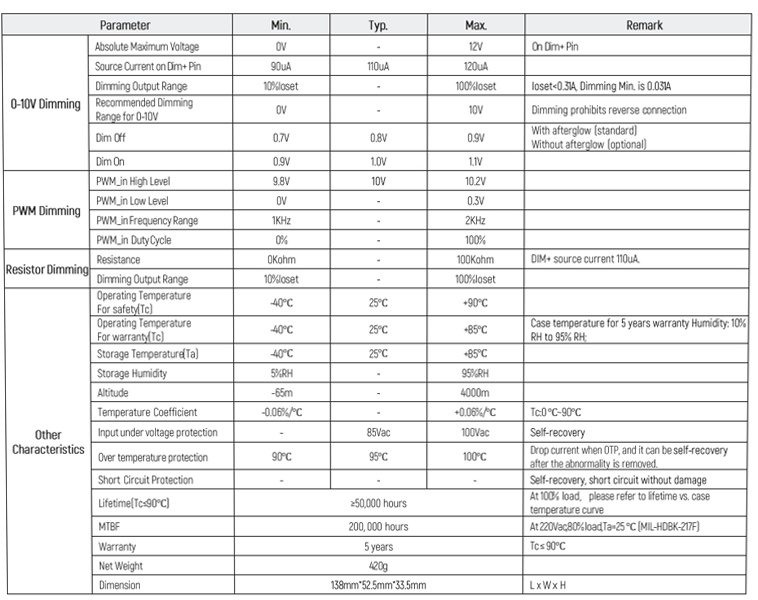

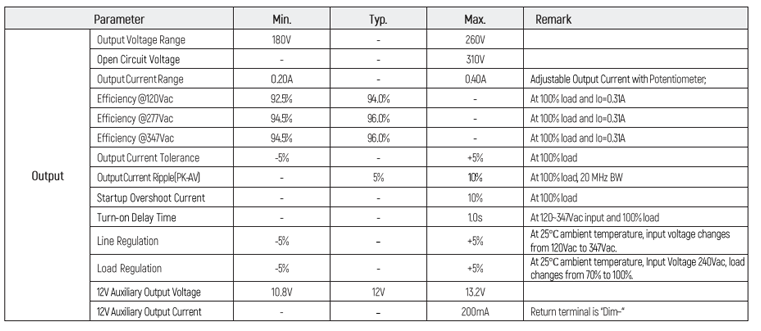

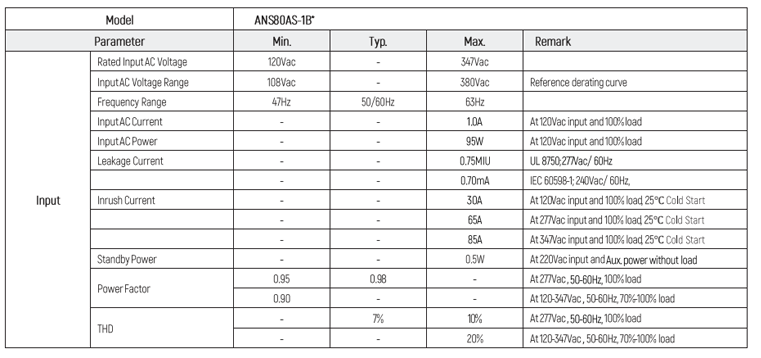

Technical Parameters

01 02 03

Note: All the parameters above are tested Ta 25℃ and LED load, unless specified.
