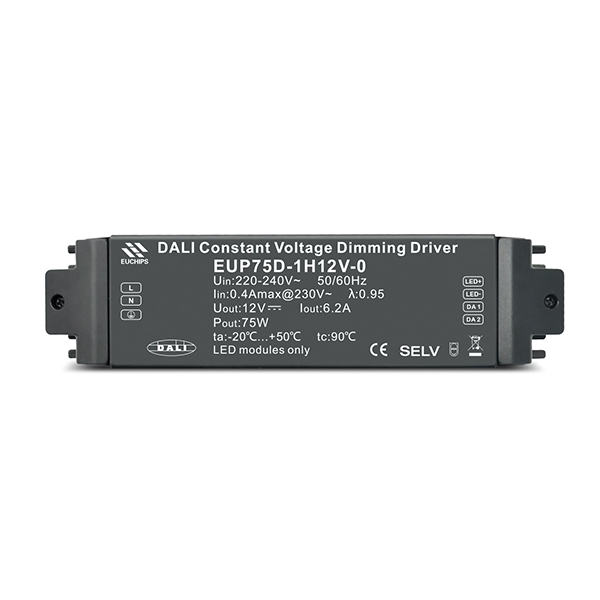

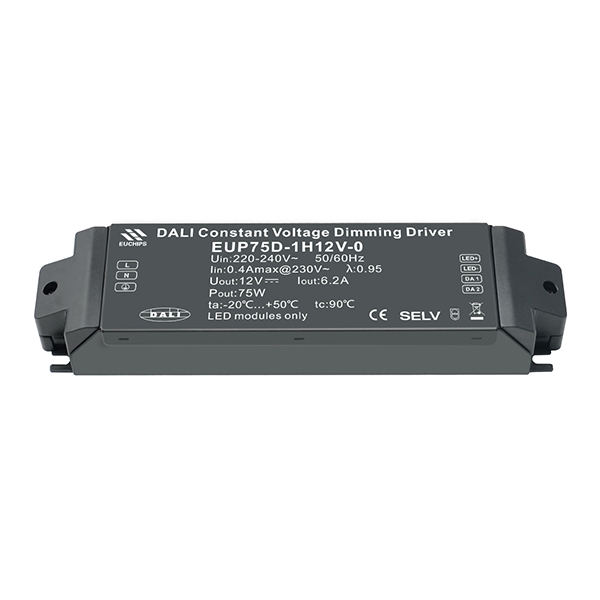

75W 12VDC DALI CV Driver EUP75D-1H12V-0
75W 12VDC DALI CV Driver EUP75D-1H12V-0
75W 12VDC DALI CV Driver EUP75D-1H12V-0

75W 12VDC DALI CV Driver EUP75D-1H12V-0

Power AmplifiersSKU: EUP75D-1H12V-0

Short Description:

  • Item No.: EUP75D-1H12V-0
  • Input Voltage: 220-240VAC
  • Output Current: 6.2A*1CH
  • Output Voltage: 12VDC
  • Output Power: 75W
  • G.W.: 460g
  • Size: 213*54*33mm

  • Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
  • Đổi trả dễ dàngTheo chính sách cửa hàng
  • Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật

75W 12VDC 6.2A*1ch 220-240VAC Constant Voltage DALI Driver EUP75D-1H12V-0

Features
1. Single channel constant voltage output, 6.2A max.
2. Meet DALI Protocol IEC62386
3. Support Touch DIM function
4. Wide input voltage of 220‐240VAC
5. Dimming effect smooth, no flicker
6. Over load protection; over voltage protection; short circuit protection; over temperature
7. IP20, Suitable for indoor LED lighting application

Technical Parameter



Model EUP75D-1H12V-0
Output Channels 1
Voltage 12VDC
Current 6.2A
Power 74.4W
Voltage Accuracy ±3%
R & N (Max) 120mVp-p
Input Voltage 220VAC – 240VAC
Frequency 50/60Hz
Efficiency ＞85%@230VAC,full load
PF ≥0.95@230VAC,full load
Current 0.4A@230VAC
Inrush current Cold start,45A@230VAC
Protection Over voltage Hiccup, recovers after fault condition is removed
Over load Hiccup, recovers after fault condition is removed
Short circuit Hiccup, recovers after fault condition is removed
Over temperature Shut down and auto-restart after normal temperature
Function Dimming mode DALI, Touch DIM
Others Dimension 213*54*33 mm（L*W*H）
G.W. 460g
Packing size 244*223*199 mm（L*W*H）,20pcs/10.5kg/Carton
IP rating IP20
Working temp. -20℃ ~ 50℃
Relative humidity 20~90% RH
