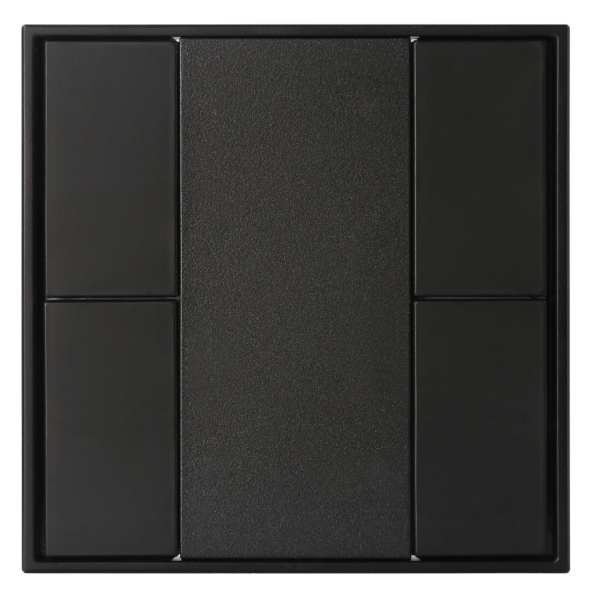

4-Key Push Button DALI Wall Switch SR-2422NK4-DA2-PL
4-Key Push Button DALI Wall Switch SR-2422NK4-DA2-PL
4-Key Push Button DALI Wall Switch SR-2422NK4-DA2-PL

4-Key Push Button DALI Wall Switch SR-2422NK4-DA2-PL

Power AmplifiersSKU: SR-2422NK4-DA2-PL

Specification

Part No. Typ. DALI Consumption Max. DALI Consumption No. of Instance for Control Device No. of Feedback LED Dimension (mm)
SR-2422NK4-DA2 2mA 10mA 4 programmable push buttons 4 programmable LEDs 80*80*26.6





Wiring Diagram

Wiring Diagram

  • Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
  • Đổi trả dễ dàngTheo chính sách cửa hàng
  • Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật

The keypad SR-2422NK4-DA2-PL is a DALI-2 certified DALI-2 control device with 4 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332. The input device supports feedback functionality and provides 4 LEDs. It is suitable for integration and in combination with DALI-2 compliant central control units. The push button device is multimaster capable, multiple modules can be installed on the DALI- line. The DALI-2 input device is DALI bus powered, no extra power supply required. It is easily configurable via DALI-2 compliant central controller USB interface.

Key Features

• DALI-2 control device with 4 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332
• Supports feedback functionality, provides 4 LEDs
• Suitable for integration and in combination with DALI-2 compliant central control units
• Multimaster capable, multiple modules can be installed on the DALI- line
• DALI bus powered, no extra power supply required
• Easy configuration via DALI-2 compliant central controller USB interface
