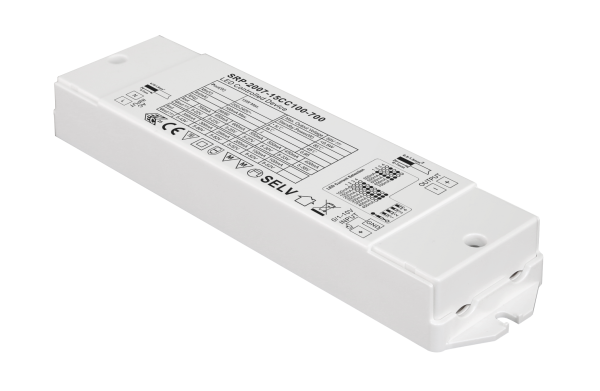

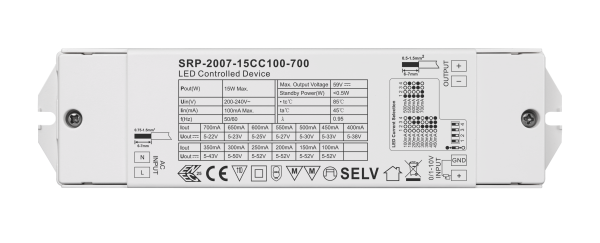

SRP-2007-15CC100-700 is a 15w 0/1-10V dimmable LED transformer with 1 channel constant current output and adjustable current from 100ma to 700ma by factory setting. It is designed with 200-240VAC input. Power factor of the driver can be over 0.9 and efficiency is higher than 80%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The dimmable transformer is controlled via 1-10v control unit and can be compatible with universal 1-10v signal. 0-10v version is optional.

Key Features

• Dimmable LED driver. Max. output power 15W
• 1 channel 100~700mA constant current output, select by DIP switch
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• To switch and dim LED luminaries
• Standby power consumption ≤0.5W
• Hybrid dimming method, smooth and deep dimming
• Built-in 0/1-10V interface；Compatible with universal 0/1-10V signal
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
