WiFi-RF Converter SR-2818WiN

Power AmplifiersSKU: SR-2818WIN



SR-2818WiN Specifications

Part No. Operation Voltage Output Dimension (mm)
SR-2818WiN 12VDC RF signal 85*110*24
SR-2818WiN-D 12VDC RF signal/DMX signal 85*110*24







Compatible Receiver

Part No. Input Voltage Output Current Output Power Output type Dimension (mm)
SR-1009FA 12-36VDC 4CH, 5A/CH 240-720W Constant Voltage 46*178*18
SR-1009FA3 12-36VDC 4CH, 0.35A/CH 16.8-50.4W Constant Current 46*178*18
SR-1009FA7 12-36VDC 4CH, 0.7A/CH 33.6-100.8W Constant Current 46*178*18
SR-1009EA 12-36VDC 4CH, 8A/CH 384-1152W Constant Voltage 58*168*28

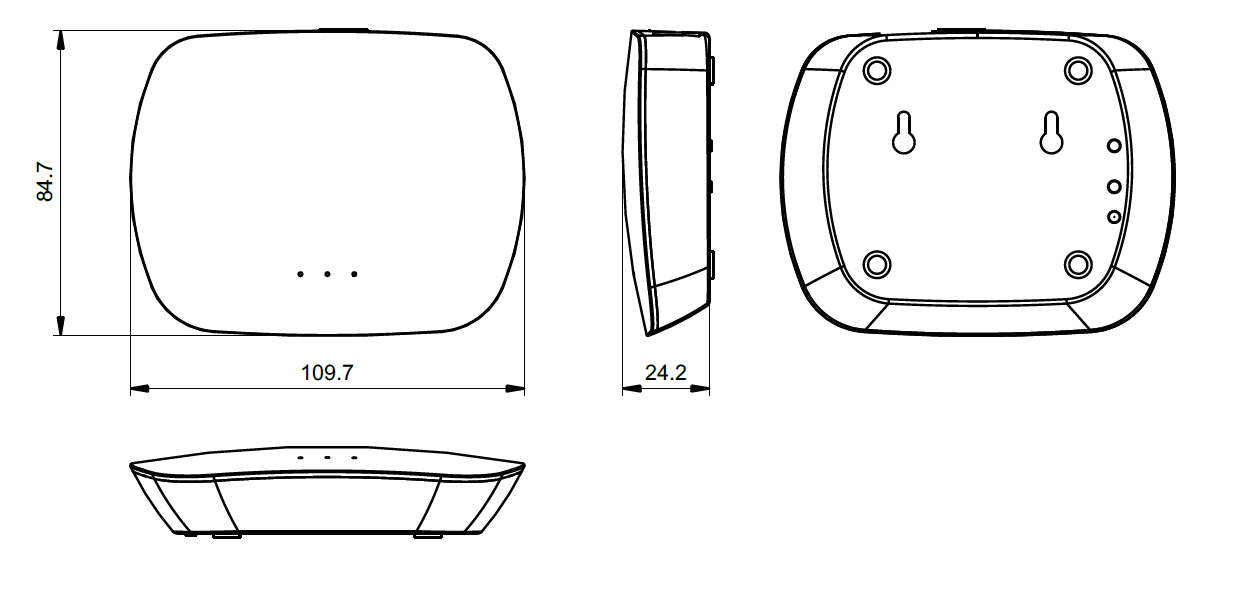

Product Dimension

Product Dimension

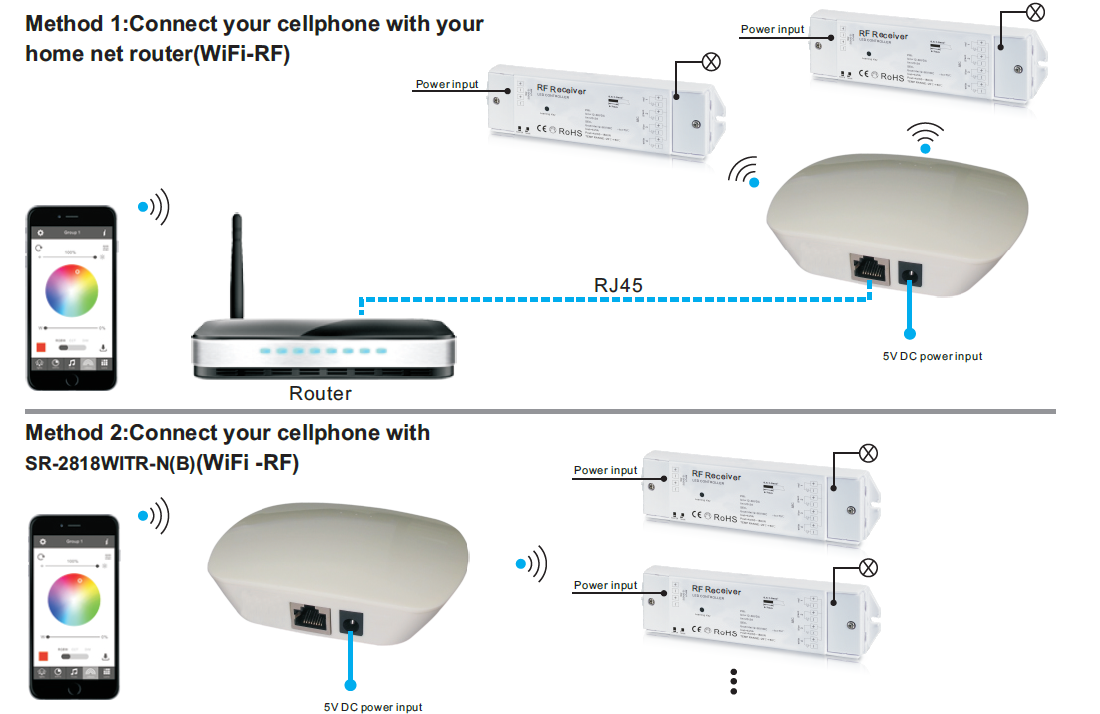

Wiring Diagram

Wiring Diagram

  • Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
  • Đổi trả dễ dàngTheo chính sách cửa hàng
  • Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật

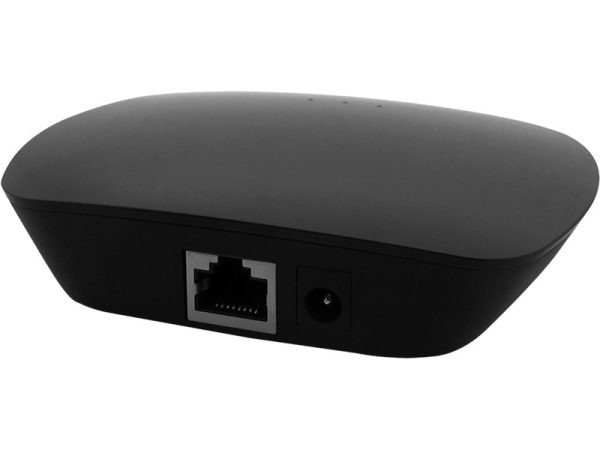

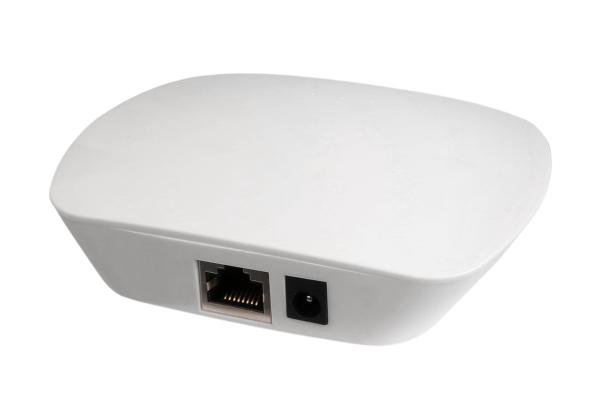

The SR-2818WiN is a compact WiFi-RF converter designed to convert WiFi signal to RF signal and be compatible with SR-1009 series receivers, which enables the RF controllers to be WiFi controlled by APP installed on IOS and Android mobile devices. It receives WiFi signal from the mobile devices and converts it to RF signal and send to the receiver. This converter greatly facilitates users to simplify the control, they do not have to find the remote controls everywhere, just a mobile phone is enough. The WiFi-RF converter can be compatible with SR-1009 series receivers to control single color, dual color, RGB and RGBW LED lighting. Free APP is available from APP store or Sunricher website.

Key Features

  • Converts WiFi signal to RF
  • Compatible with SR-1009 series receivers
  • More convenient and flexible control
  • Single or multiple receivers can be controlled by each control system
  • Free APP available from APP store or Sunricher website
  • Humanized APP interface, easy operation
