DMX ControllerSKU: SR-2100AMP

Specifications

Part No. Input Current Output Dimension (mm)

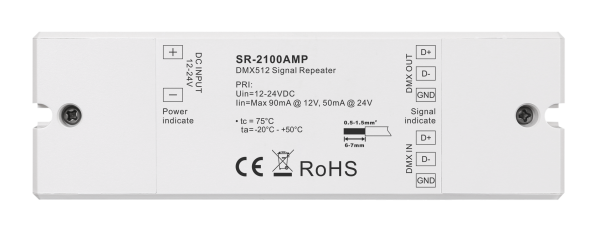

SR-2100AMP 12-24VDC 0.5A Max. DMX512 signal 46.5*145*16

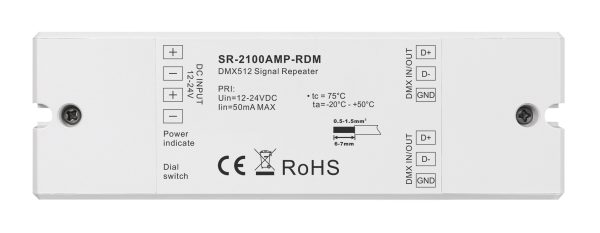

SR-2100AMP-RDM 12-24VDC 0.5A Max. DMX512 signal/RDM 46.5*145*16

Product Dimension

Product Dimension

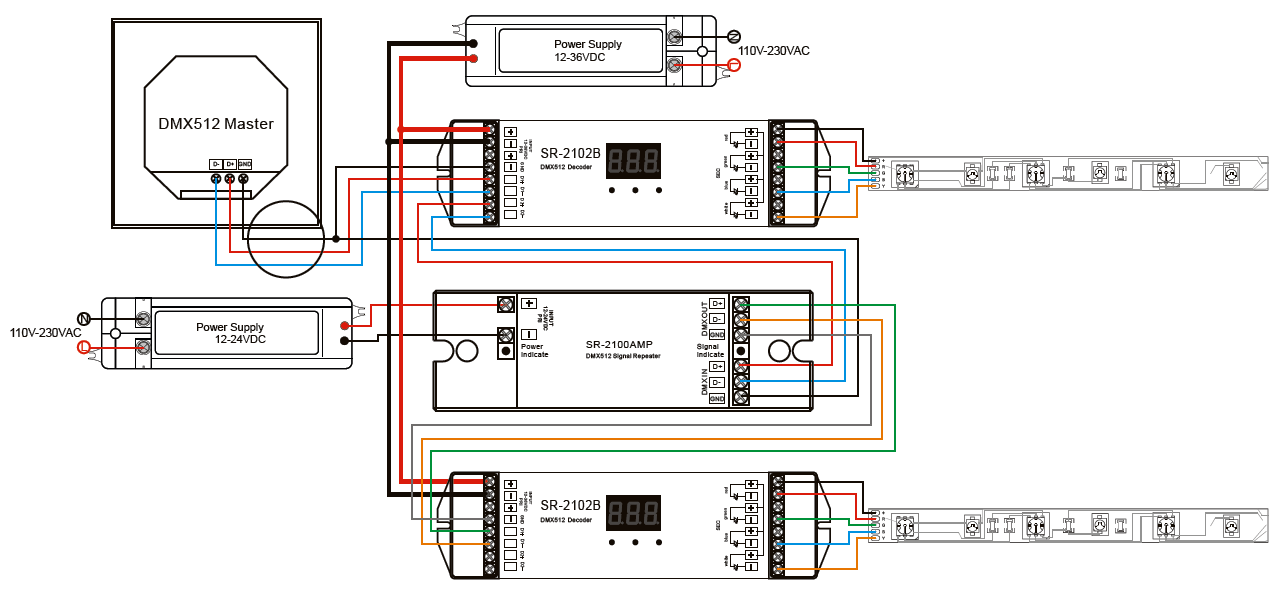

Wiring Diagram

Wiring Diagram

  • Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
  • Đổi trả dễ dàngTheo chính sách cửa hàng
  • Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật

SR-2100AMP is a DMX512 signal amplifier which complies with standard protocol DMX512 (1990). With DMX signal input and DMX signal output, the signal amplifier works with DMX decoder series to expand DMX signal based on the actual lighting projects.

Key Features

  • DMX signal input/output
  • Work with DMX decoder series to expand DMX signal based on the actual lighting projects
