SRP-2305N-65CC500-1500

DALI Driver CCSKU: 65w-nfc-programmable-dali-dt6-led-driver-constant-current-srp-2305n-65cc500-1500

Specifications

Part No. Input Voltage Standby Power consumption Rated Power Current Voltage Size (LxWxH)
SRP-2305N-65CC500-1500 200-240V AC <0.5W Max.65W  500-1500mA 6-58VDC 123.9*78.8*30mm

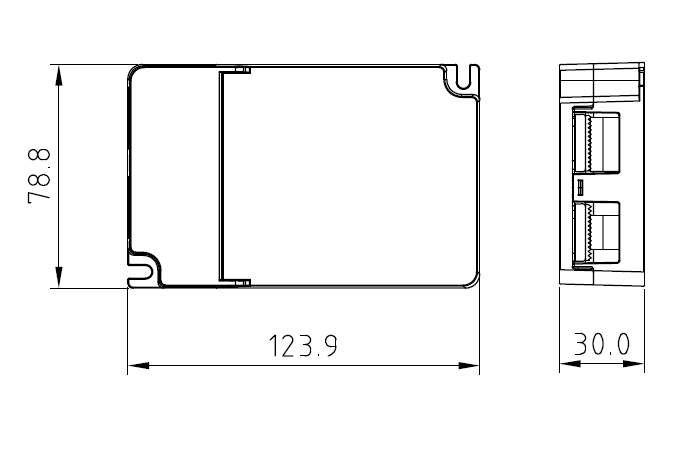

Product Dimension

Product Dimension

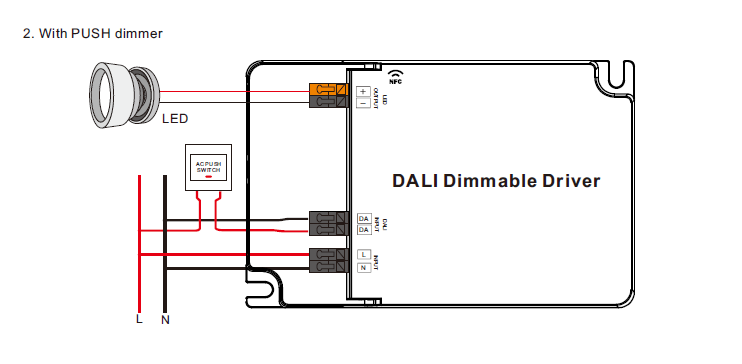

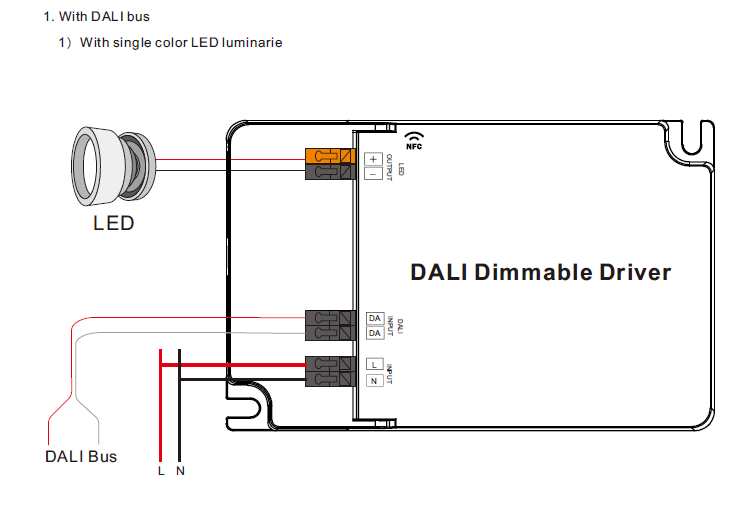

Wiring Diagram

Wiring Diagram

Wiring Diagram

  • Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
  • Đổi trả dễ dàngTheo chính sách cửa hàng
  • Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật

Product Description

This 65W NFC programmable DALI DT6 LED Driver is DALI-2 certified and in compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and compatible with universal DALI masters that support DT6 commands. The driver can be programmed with NFC programming APP or tool, the output current can be configured with 0.1mA stepping between 500-1500mA, which ensures high current accuracy and helps to reduce stocks. DALI configurations such as addressing, grouping, scene setting, power on level, system fail level, fade time, fade rate etc. can also be configured through NFC.With built-in DALI-2/Push interface, this DALI DT6 device is endowed with high power factor and efficiency. This dimmable driver has maximum output power of 65W. With class Ⅱ power supply and full isolated plastic case, this driver can switch and dim LED lighting fixtures. It features flicker free and deep dimming to 0.01%. Besides, it has error report function. Its protection grade is IP20, which is suitable for indoor LED lighting applications, with 5-year warranty.

Key Features

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2

• DALI-2 certified, built-in DALI-2/Push interface, DALI DT6 device

• Dimmable LED driver. Max. output power 65W

• Output current can be configured with 0.1mA stepping between 500-1500mA through NFC

• Class Ⅱ power supply, full isolated plastic case

• High power factor and efficiency

• To switch and dim LED lighting fixtures

• Flicker free and deep dimming to 0.01%

• Compatible with universal DALI masters that support DT6 commands

• Error report function

• IP20 rating, suitable for indoor LED lighting applications

• 5 years warranty
