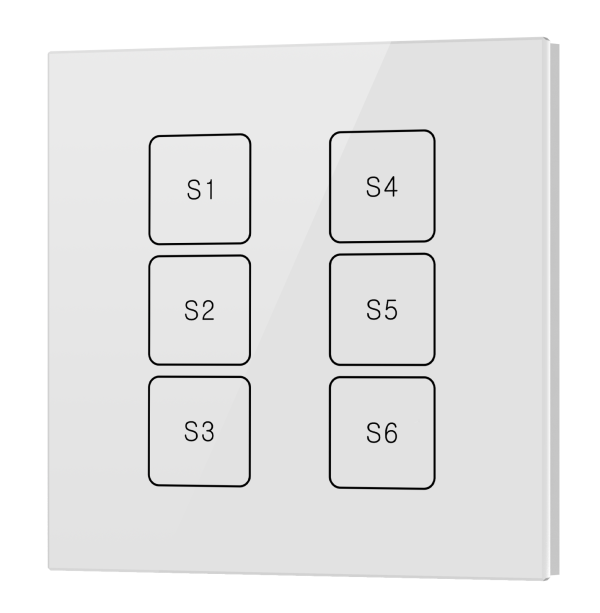

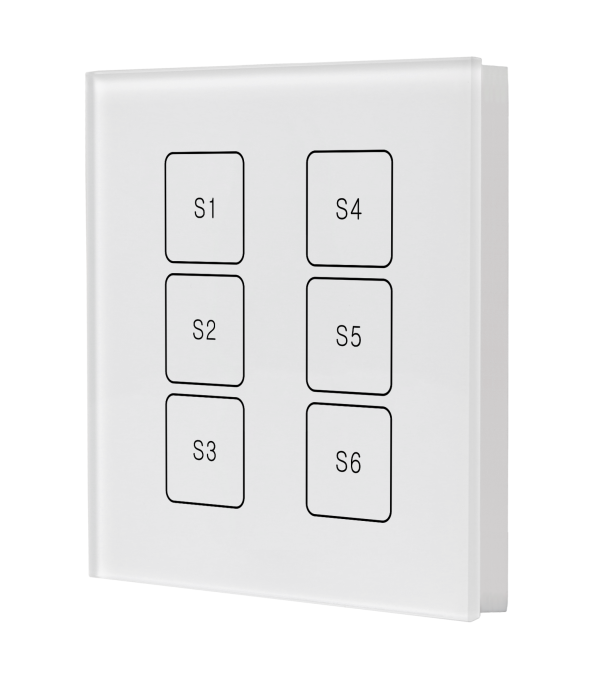

DALI ControllerSKU: SR-2422T6-DIM-G1-S6

Specifications

Output Power Supply Operation Current Operating temperature Relative humidity Dimensions
DALI signal Supply By DALI Bus 4mA 0-40°C 8% to 80% 86x86x29.1mm

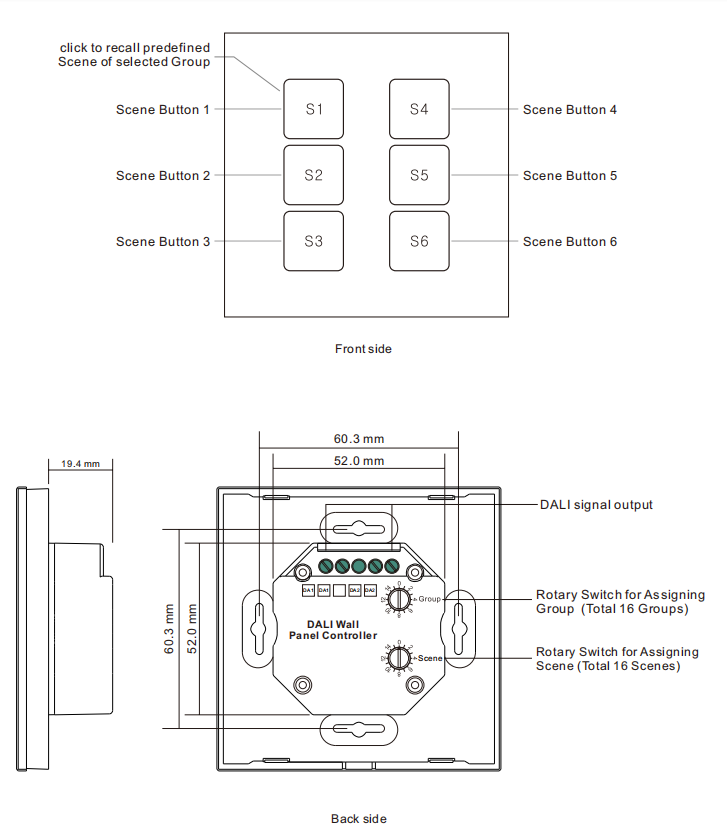

Product Dimension

Product Dimension

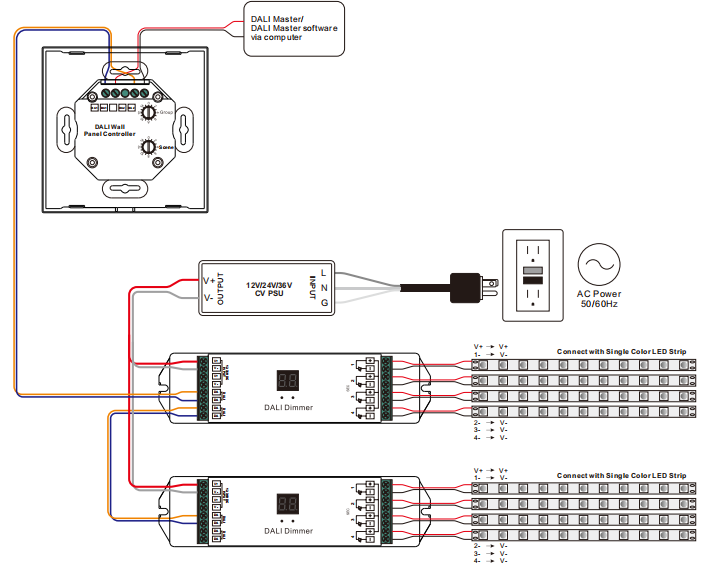

Wiring Diagram

Wiring Diagram

  • Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
  • Đổi trả dễ dàngTheo chính sách cửa hàng
  • Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật

This DALI touch panel controller enables Group selection commands to be sent to One Group of devices on the DALI circuit for Scene control. A rotary switch on the back is used to select Group you would like to control and set the starting Group number, and total 16 Groups (0-15) can be selected.

Key Features

•  Set the controlled group/scene by rotary switch

•  DALI touch controller

•  Multimaster capable, multiple modules can be installed on the DALI- line

•  DALI bus powered, no extra power supply required
