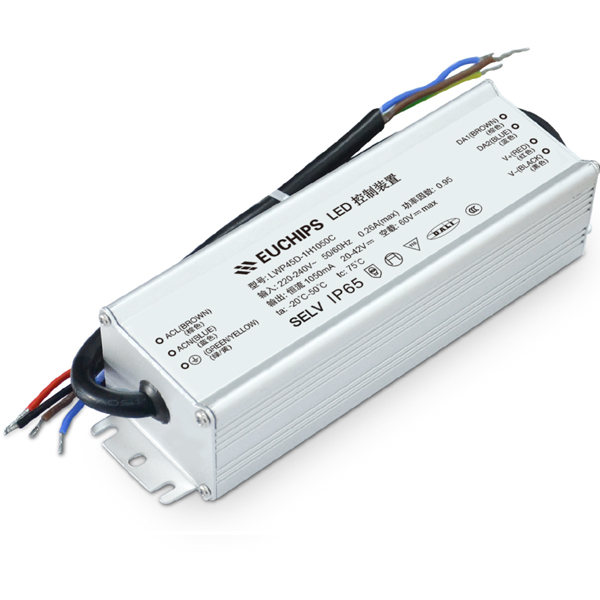

45W 1050mA DALI Waterproof CC Driver LWP45D-1H1050C

45W 1050mA DALI Waterproof CC Driver LWP45D-1H1050C

Power AmplifiersSKU: LWP45D-1H1050C

Short Description:

  • Item No.: LWP45D-1H1050C
  • Output Power: 45W

  • Miễn phí vận chuyểnCho đơn từ mức tối thiểu của shop
  • Đổi trả dễ dàngTheo chính sách cửa hàng
  • Bảo hành chính hãngHỗ trợ kích hoạt & kỹ thuật

45W 1050mA Waterproof DALI CC Driver LWP45D-1H1050C

LWP45D-1H1050C is a 45W AC-DC LED driver, which conforms to Dali standard protocol IEC62386. Connect Dali master to achieve smooth dimming effect. IP65 waterproof grade,  suitable for indoor and outdoor lamps.

Features

·Constant current output
·Follow Dali protocol standard IEC62386
·Built in active PFC function
·THD <10%
·Overload protection, short circuit protection, no-load protection
·IP65, suitable for various LED lighting applications requiring dimming

Technical Parameters

Model

 LWP45D-1H1050C


Input

 Efficiency 85%@230VAC, Full load
Voltage 220VAC-240VAC
Frequency Range(Hz) 50/60Hz
Power Factor ≥0.95@230VAC, Full load
THD(full load) <10%@230VAC, Full load
AC Current(max) 0.22Amax@230VAC
Inrush Current(max) Cold start,28A(twidth=20us measured at 50% Ipeak)@230VAC


Output

 Current(mA)/Voltage (VDC)/Power(W) 1050mA/20-42VDC/44.1W(max)
No load output voltage 60VDC Max
Current Tolerance ±5%
Ripple Current <3%
Load Rugulation Rate <±5%
Linear Rugulation Rate <±5%
Turn on Delay <1.5s

Function

 Dimming Type DALI
 Protection Short Circuit Close output, recovers automatically after fault removed
Over Load Hiccup, recovers automatically after fault removed
No load Power supply will not be damaged


Safety & EMC

 Surge L-N:2KV,L,N-PE:4KV
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA; I/P-G: 1500vac/5mA/1min;
DALI Standard IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0
Safety Standards GB19510.1-2009, GB19510.14-2009






Others

 Working Temp. -20°C~50°C
Storage Temp., Humidity -25°C~75°C, 5-95%RH
tc 75°C
Material Metal
IP Rating IP65
Lifetime 50,000h@ta:40°C
Warranty Condition 5 Years
Switch Cycle >25,000 times
Packing(weight) Net weight: –g±5%/PCS; 50PCS/Carton; –kg±5%/Carton; Carton Size: –mm(L*W*H)
Dimension 167*49.5*40.5mm(L*W*H)
