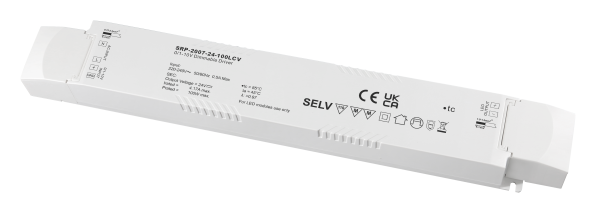

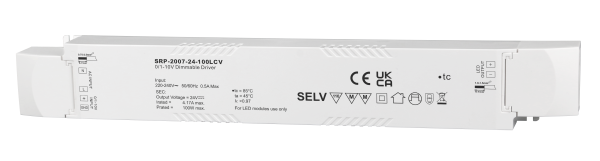

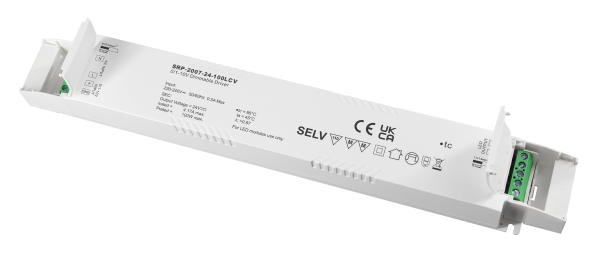

The SRP-2007-24-100LCV is an UL & ENEC approved 100w 0/1-10V LED dimmable driver with 220-240VAC input and 1 channel constant voltage output. The output voltage can be available in 24VDC by factory setting. Power factor of the driver can be over 0.9 and efficiency is higher than 87%. It enables smooth and deep dimming to 0.1% without flickering and buzzing noise. The LED driver can be compatible with kinds of dimming signal including 0-10V, 1-10V, potentiometer and push switch to dim and switch single color LED lighting. 1 channel 0/1-10V signal input is available for controlling of 4 channels PWM output synchronously. The 0/1-10V CV LED driver is designed with over current protection, over heat protection and short circuit protection.

Key Features

• Dimmable LED driver
• Max. output power 100W
• 1 channel DC 24V constant voltage output
• Class power supply, full isolated plastic case
• High power factor and efficiency
• To switch and dim single color LED lighting
• Built-in 0/1-10V interface, 1 channel 0/1-10V signal input
• Compatible with universal 0/1-10V signal
• PWM dimming, smooth and deep dimming to 0.1%
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
