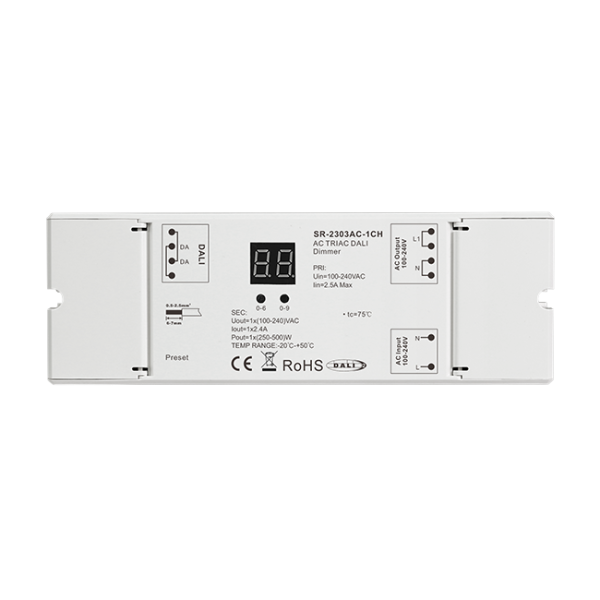

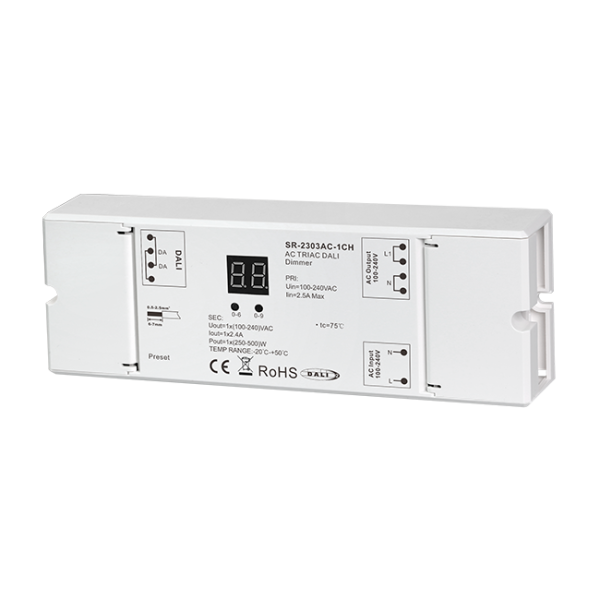

The SR-2303AC-1CH is a Triac DALI dimmer designed with 100-240VAC input and 100-240VAC output and safe and reliable full isolation design to dim and switch single color LED lamps, traditional incandescent and halogen lights. It is also compatible with universal triac dimmable LED drivers. The DALI dimmer is designed with DALI control interface with digital numeric digital display to set and show DALI address freely. The AC dimmer is trailing edge dimming (reverse-phase control) and comes with 1 channels and maximum 2.4A per channel output. The innovative minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness. Also it is easy to delete the minimum brightness. The DALI dimmer can be compatible with universal DALI master controllers.

Key Features

• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
• Built-in DALI-2 interface, DALI DT6 device
• Match all DALI systems in the market
• Safe and reliable full isolation design
• Reverse-phase control dimmer
• Supports resistive loads and capacitive loads
• Great compatibility with a variety of DALI master controllers
• 1 channel AC100-240V output
• Innovative minimum brightness setting function
• To dim and switch single color dimmable LED lamps, traditional incandescent and halogen light
• Waterproof grade: IP20
